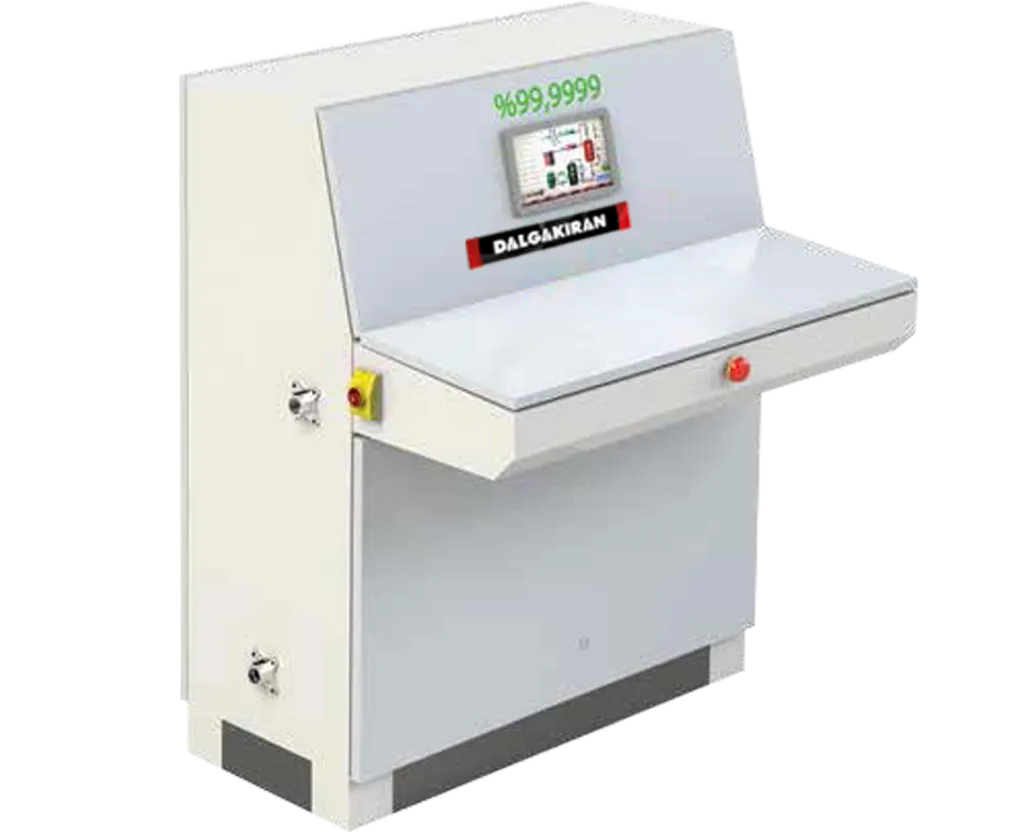

DCX Nitrogen Purifier Systems
Advantages
Most PSA Nitrogen Generator users require the highest levels of Nitrogen purity by the most costeffective means possible.
Dalgakıran DCX Nitrogen Purifier System offers an extremely economic way to increase nitrogen purity levels beyond 99.9% all the way up to 99.9999% purity.
DCX is the true add-on technology for Nitrogen Generation applications requiring 1-5 ppm ultra high purity.
DCX can easily be integrated with already existing Nitrogen Generator System (free from brand) resulting in high purity nitrogen gas at minimum costs.
How It Works
The nitrogen gas obtained from a nitrogen generator is enriched with a minimum amount of hydrogen before it passes into the catalyst. The hydrogen reacts with the residual oxygen of the nitrogen, the chemical reaction being water vapor and heat, which are removed by filtration & drying.
Thanks to our innovative DCX system you can produce ultra-pure nitrogen with smaller air compressors.
| Model | Nitrogen Purity (%) | Capacity (Nm³/min) | Power Consumption (kW/h) | Voltage | Noise Level dB(A) |
|---|---|---|---|---|---|
| DCX 20 | 99,9999 | 0,41 | 20 | 230/1/50 | 55-85 |
| DCX 40 | 99,9999 | 0,66 | 28 | 230/1/50 | 55-85 |
| DCX 60 | 99,9999 | 0,83 | 35 | 230/1/50 | 55-85 |
| DCX 80 | 99,9999 | 1,33 | 51 | 230/1/50 | 55-85 |
| DCX 100 | 99,9999 | 1,58 | 60 | 230/1/50 | 55-85 |
| DCX 150 | 99,9999 | 2,33 | 90 | 230/1/50 | 55-85 |
