DRYAIR DK Refrigerated Type Compressed Air Dryers
Advantages
• Low footprint, lightweight, compact design
• Corrosion-resistant aluminium structure
• Problem-free and reliable electronic control
• Can be mounted on the floor, bench, or wall
• Suitable layout for any workplace
• Easy to install and maintain
• High efficiency and flexibility
• Energy efficient
• Dew point from -40°C to -70°C (optional)

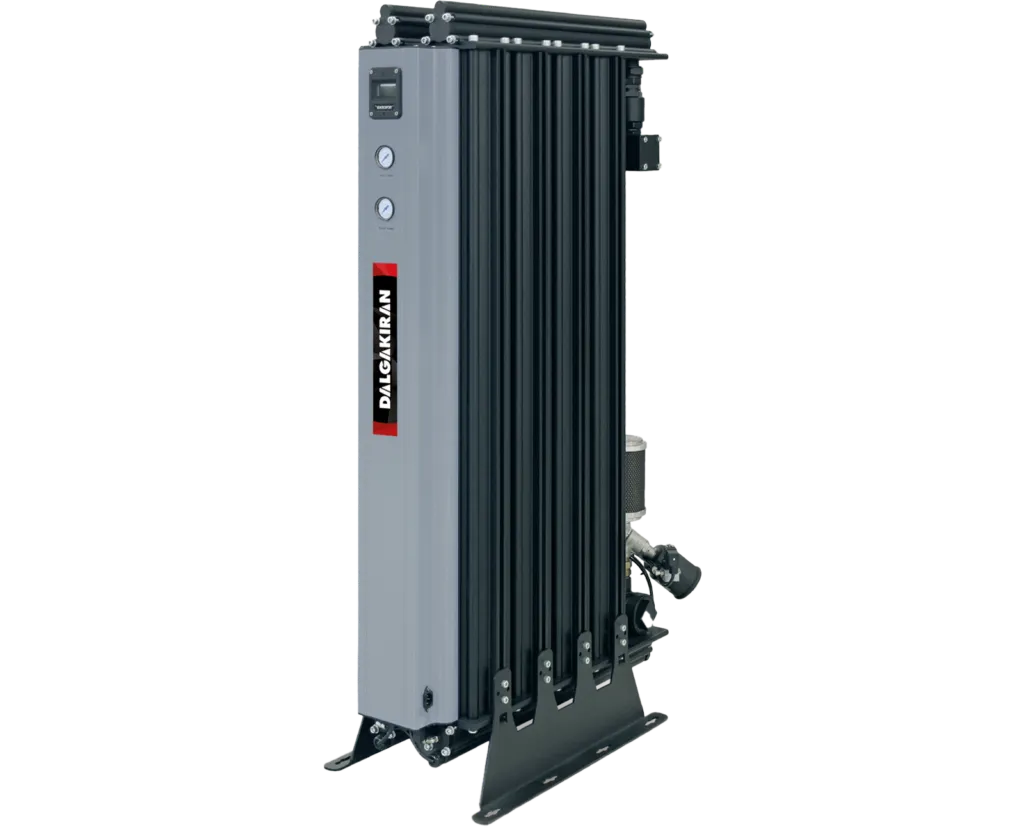

DMD model adsorption dryers use a modular design for a lightweight, compact body.
Having half the size and weight of traditional twin-tower adsorption dryers, they provide users with the advantage of flexible installation. This is one of the adsorption air dryer models with the lowest pressure drop in the world with its highly engineered inlet valve and discharge manifold design.
TECHNICAL SPECIFICATIONS
| Model | Max. Pressure | Capacity | Connection | Filter | Voltage | Dimensions (mm) | Weight | Controller | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| bar | psi | m³/min | cfm | (V/ph/Hz) | Length | Width | Height | kg | ||||
| DMD 3 | 16 | 232 | 0,08 | 3 | G 1/2 | Included | 230/1/50-60 | 336 | 320 | 558 | 17 | Crouzet Millenium 3 |
| DMD 5 | 16 | 232 | 0,17 | 6 | G 1/2" | Included | 230/1/50-60 | 320 | 320 | 633 | 19 | Crouzet Millenium 3 |
| DMD 10 | 16 | 232 | 0,33 | 12 | G 1/2" | Included | 230/1/50-60 | 320 | 320 | 908 | 27 | Crouzet Millenium 3 |
| DMD 15 | 16 | 232 | 0,42 | 15 | G 1/2" | Included | 230/1/50-60 | 350 | 370 | 808 | 31 | Crouzet Millenium 3 |
| DMD 20 | 16 | 232 | 0,58 | 21 | G 1/2" | Included | 230/1/50-60 | 350 | 370 | 1108 | 42 | Crouzet Millenium 3 |
| DMD 25 | 16 | 232 | 0,75 | 26 | G 1/2" | Included | 230/1/50-60 | 350 | 370 | 1258 | 48 | Crouzet Millenium 3 |
| DMD 30 | 16 | 232 | 0,83 | 29 | G 1/2" | Included | 230/1/50-60 | 350 | 370 | 1508 | 54 | Crouzet Millenium 3 |
| DMD 40 | 16 | 232 | 1,17 | 41 | G 1 1/2" | Included | 230/1/50-60 | 495 | 410 | 1250 | 71 | Crouzet Millenium 3 |
| DMD 50 | 16 | 232 | 1,42 | 50 | G 1 1/2" | Included | 230/1/50-60 | 495 | 410 | 1400 | 78 | Crouzet Millenium 3 |
| DMD 60 | 16 | 232 | 1,67 | 59 | G 1 1/2" | Included | 230/1/50-60 | 495 | 410 | 1750 | 92 | Crouzet Millenium 3 |
| DMD 75 | 16 | 232 | 2,17 | 77 | G 1 1/2" | Included | 230/1/50-60 | 622 | 430 | 1300 | 120 | Crouzet Millenium 3 |
| DMD 100 | 16 | 232 | 2,83 | 100 | G 1 1/2" | Included | 230/1/50-60 | 622 | 430 | 1450 | 133 | Crouzet Millenium 3 |
| DMD 120 | 16 | 232 | 3,33 | 118 | G 1 1/2" | Included | 230/1/50-60 | 622 | 430 | 1750 | 152 | Crouzet Millenium 3 |
| DMD 180 | 16 | 232 | 5 | 177 | G 1 1/2" | Included | 230/1/50-60 | 734 | 410 | 1499 | 186 | Crouzet Millenium 3 |
| DMD 240 | 16 | 232 | 6,67 | 235 | G 1 1/2" | Included | 230/1/50-60 | 889 | 410 | 1497 | 235 | Crouzet Millenium 3 |
| DMD 340 | 16 | 232 | 9,6 | 340 | 2" | * | 230/1/50-60 | 994 | 400 | 1654 | * | Crouzet Millenium 3 |
| DMD 400 | 16 | 232 | 11,3 | 400 | 2" | * | 230/1/50-60 | 1335 | 400 | 1554 | * | Crouzet Millenium 3 |
| DMD 500 | 16 | 232 | 14,2 | 500 | 2" | * | 230/1/50-60 | 1505 | 400 | 1654 | * | Crouzet Millenium 3 |
| DMD 590 | 16 | 232 | 16,7 | 590 | 2" | * | 230/1/50-60 | 1675 | 400 | 1754 | * | Crouzet Millenium 3 |
| DMD 735 | 16 | 232 | 20,8 | 735 | 3" | * | 230/1/50-60 | 1675 | 400 | 2054 | * | Crouzet Millenium 3 |
| DMD 890 | 16 | 232 | 25 | 890 | 3" | * | 230/1/50-60 | 1845 | 400 | 2054 | * | Crouzet Millenium 3 |
| DMD 1060 | 16 | 232 | 30 | 1060 | 3" | * | 230/1/50-60 | 2015 | 400 | 2054 | * | Crouzet Millenium 3 |
