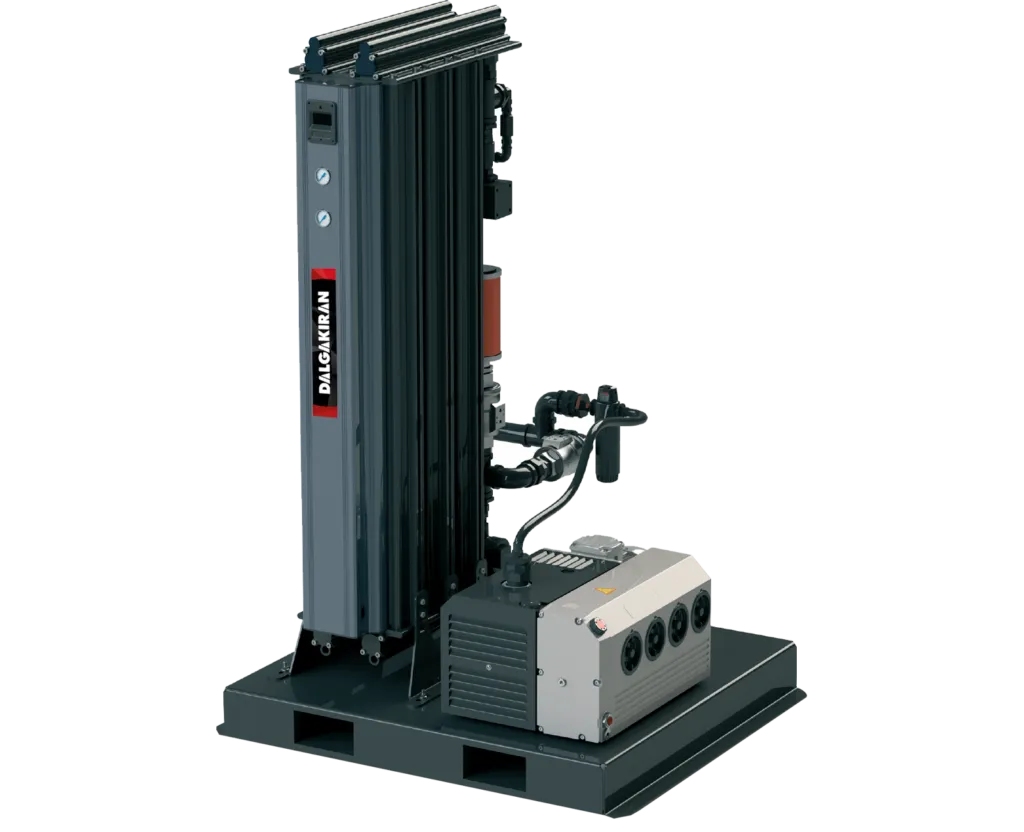

DMD VP Desiccant Compressed Air Dryers

Advantages

  Food and Beverage

  Pharmaceutical

  Automotive

 Electronic

  All industries requiring a dew point of -40°C or optional -70°C.

What is Desiccant Compressed Air Dryer?

The DMD-VP Series modular, vacuum purge heatless desiccant air dryers remove water vapour from the compressed air, stop corrosion, and prevent the growth of micro-organisms when supplying the clean air crucial for production. DMD-VP Series air dryers efficiently and reliably supply the system with high-quality dry air with a dew point of -40 °C or optionally a dew point of -70 °C. This extends the machinery’s life span, keeps maintenance costs to a minimum, and results in safe and healthy production. The new vacuum purge technology minimises air loss during regeneration and optimises production levels.
TECHNICAL SPECIFICATIONS
Model Capacity Vacuum Pump Filter Connection Voltage Max. Working Pressure
m³/min cfm V bar
DMD-VP-60 1,66 1,1 Included 11/2" 400/3/50 16
DMD-VP-75 2,16 1,1 Included 11/2" 400/3/50 16
DMD-VP-100 2,83 1,3 Included 11/2" 400/3/50 16
DMD-VP-120 3,33 2,2 Included 11/2" 400/3/50 16
DMD-VP-180 5 2,2 Included 11/2" 400/3/50 16
DMD-VP-240 6,66 3 Included 11/2" 400/3/50 16
DMD-VP-340 9,58 4 Included 11/2" 400/3/50 16
DMD-VP-400 11,33 4 Included 2" 400/3/50 16
DMD-VP-500 14,16 5,5 Included 2" 400/3/50 16
DMD-VP-590 16,66 5,5 Included 2" 400/3/50 16
DMD-VP-740 20,83 7,5 Included 3" 400/3/50 16
