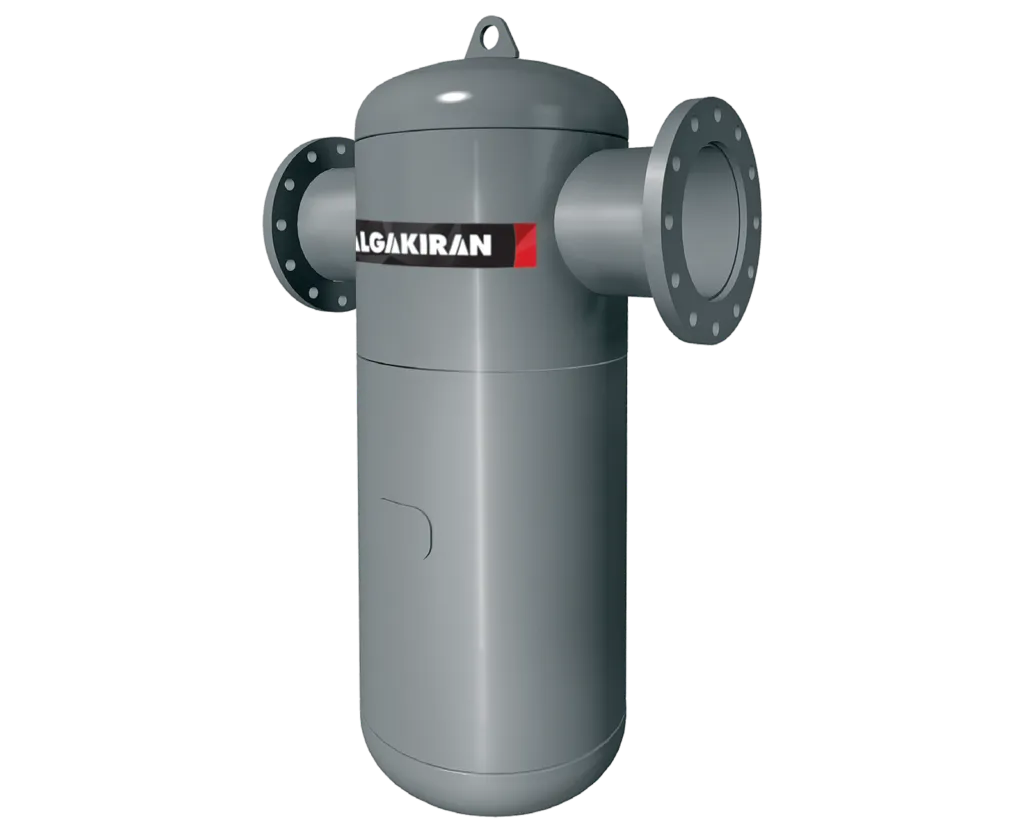

F WS Flanged Water Separators
Advantages
F WS models have 3” – 8” pipes for flow rates up to 14.000 m³/h. Line filters should be used to remove unwanted substances left in the compressed air after the extremely efficient water separators.
Dalgakıran water separators are designed to remove liquid water and some particulates in compressed air at the compressor outlet.
Their unique centrifugal effect separates heavier-than-air matter and the low pressure drop makes them energy-efficient.
TECHNICAL SPECIFICATIONS
| Model | Max. Pressure | Capacity | Connection | Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| bar | psi | (m³/min) | cfm | A | B | C | D | E | F | ||
| F 2500 WS | 14 | 203 | 41,6 | 1471 | DN80 | 200 | 934 | 450 | 75 | 280 | 1289 |
| F 3200 WS | 14 | 203 | 53,3 | 1883 | DN100 | 220 | 964 | 450 | 75 | 280 | 1319 |
| F 4300 WS | 14 | 203 | 71,6 | 2531 | DN100 | 220 | 928 | 530 | 75 | 280 | 1283 |
| F 6500 WS | 14 | 203 | 108,3 | 3826 | DN150 | 285 | 1092 | 580 | 75 | 280 | 1447 |
| F 8500 WS | 14 | 203 | 141,6 | 5003 | DN150 | 285 | 1091 | 650 | 75 | 280 | 1446 |
| F 11000 WS | 14 | 203 | 183,3 | 6474 | DN200 | 340 | 1168 | 750 | 75 | 280 | 1523 |
| F 14000 WS | 14 | 203 | 233,3 | 8240 | DN200 | 340 | 1201 | 800 | 75 | 280 | 1556 |
