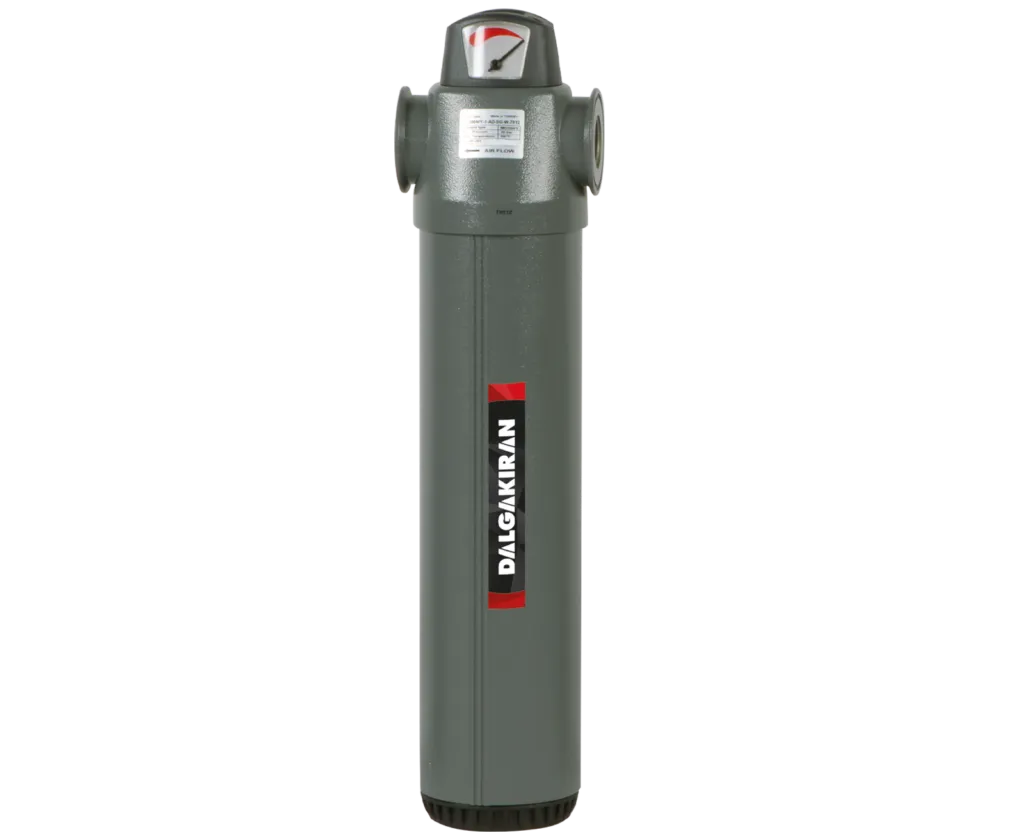

G MSS Compressed Air Sterile Filters
Advantages
• Specially designed for medical compressed air plants
• Partical removal down to 0.01 micron
• Suitable for steam sterilisation in an autoclave
• Partical removal down to 0.01 micron
• Suitable for steam sterilisation in an autoclave
TECHNICAL SPECIFICATIONS
| Model | Max. Pressure | Capacity | Connection | Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| bar | psi | m3/min | cfm | A | B | C | D | E | ||
| G 20 MSS | 16 | 232 | 0.33 | 12 | G 1/4" | 72 | 19 | 193 | 100 | 22 |
| G 25 MSS | 16 | 232 | 0.42 | 15 | G 1/4" | 72 | 19 | 193 | 100 | 22 |
| G 40 MSS | 16 | 232 | 0.67 | 24 | G 3/8" | 96 | 20 | 237 | 110 | 22 |
| G 50 MSS | 16 | 232 | 0.83 | 30 | G 3/8" | 96 | 20 | 237 | 110 | 22 |
| G 100 MSS | 16 | 232 | 1.67 | 59 | G 1/2" | 96 | 20 | 237 | 150 | 22 |
| G 150 MSS | 16 | 232 | 2.50 | 88 | G 3/4" | 117 | 34 | 375 | 190 | 56 |
| G 200 MSS | 16 | 232 | 3.33 | 118 | G 3/4" | 117 | 34 | 375 | 250 | 56 |
| G 250 MSS | 16 | 232 | 4.17 | 147 | G 1" | 117 | 34 | 465 | 300 | 56 |
| G 300 MSS | 16 | 232 | 5.00 | 177 | G 1 1/4" | 117 | 34 | 465 | 350 | 56 |
| G 500 MSS | 16 | 232 | 8.33 | 294 | G 1 1/4" | 117 | 34 | 530 | 380 | 56 |
| G 600 MSS | 16 | 232 | 10.00 | 353 | G 1 1/2" | 117 | 34 | 530 | 425 | 56 |
| G 851 MSS | 16 | 232 | 14.20 | 501 | G 2" | 170 | 64 | 722 | 480 | 56 |
| G 1210 MSS | 16 | 232 | 20.20 | 712 | G 2" | 170 | 64 | 722 | 550 | 56 |
| G 1520 MSS | 16 | 232 | 25.30 | 895 | G 2 1/2" | 235 | 72 | 760 | 430 | 56 |
| G 1820 MSS | 16 | 232 | 30.30 | 1071 | G 3" | 235 | 72 | 760 | 550 | 56 |
| G 2220 MSS | 16 | 232 | 37.00 | 1307 | G 3" | 235 | 72 | 760 | 600 | 56 |
