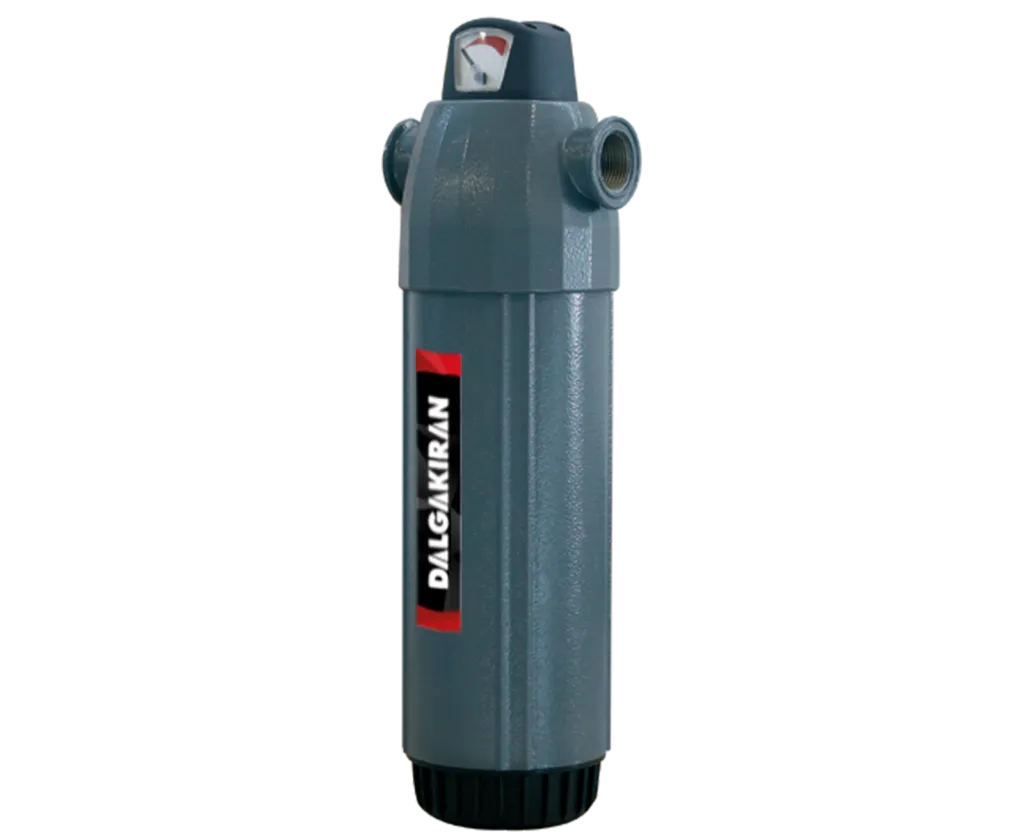

GON Compressed Airline Filters
Advantages
• Air flow from 35 m³/h to 5400 m³/h
• NPT/BSP pipe sizes range from ¼” to 4” inclusive
• Pore-free aluminium construction
• Options:
• “Standard Drain” with a ½” connector or
• “Drain-free” with a ½” connector and adaptor.
• Neatly designed connection clips and wall apparatus
• ISO 8573-compliant production
• Zero clearance
• Anodised
• Locking System Indicator
Dalgakıran’s GON Series of Industrial Air Filters offer its compressed air users high-efficiency filtration with low pressure losses.
Having more port sizes, it delivers a reliable performance, minimising air contamination in compressed air systems. The innovative “Zero Clearance” design allows users to assemble and replace the filter and other components in any compressed air unit easily. Constructed of aluminium, the GON series is built to last, meets PED and ISO 8573 standards, and is extremely economical.
TECHNICAL SPECIFICATIONS
| Model | Connection Size | Flow Rate | Max. Working Pressure (bar) | Element Model | Housing Dimensions (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| (m³/min) | cfm | A | B | C | D | E | ||||
| GON-35 | G 1/2" | 0.58 | 20 | 20 | MON35 | 90 | 36.5 | 214 | 192 | 19 |
| GON-55 | G 1/2" | 0.91 | 32 | 20 | MON55 | 90 | 36.5 | 251.5 | 230 | 19 |
| GON-70 | G 1/2" | 1.16 | 41 | 20 | MON70 | 128 | 45 | 273 | 249.5 | 32 |
| GON-100 | G 1/2" | 1.66 | 59 | 20 | MON100 | 128 | 45 | 302.5 | 279 | 32 |
| GON-125 | G 1/2" | 2.08 | 73 | 20 | MON125 | 128 | 45 | 343 | 319.5 | 32 |
| GON-150 | G 1" | 2.50 | 88 | 20 | MON150 | 140 | 45 | 369 | 334.5 | 31 |
| GON-225 | G 1" | 3.75 | 132 | 20 | MON225 | 140 | 45 | 398 | 364.5 | 31 |
| GON-300 | G 1 1/2” | 5.00 | 177 | 20 | MON300 | 140 | 45 | 474 | 432 | 31 |
| GON-400 | G 1 1/2” | 6.66 | 235 | 20 | MON400 | 140 | 45 | 564 | 522 | 31 |
| GON-500 | G 1 1/2” | 8.33 | 295 | 20 | MON500 | 151 | 45 | 511 | 464.5 | 25 |
| GON-600 | G 1 1/2” | 10.00 | 353 | 20 | MON600 | 151 | 45 | 626 | 579.5 | 25 |
| GON-800 | G 2” | 13.33 | 471 | 20 | MON800 | 151 | 45 | 696 | 649.5 | 25 |
| GON-1000 | G 2” | 16.66 | 588 | 20 | MON1000 | 151 | 45 | 851 | 804.5 | 25 |
| GON-1200 | G 2” | 20.00 | 706 | 20 | MON1200 | 151 | 45 | 976 | 929.5 | 25 |
| GON-1550 | G 3'' | 25.83 | 912 | 20 | MON1550 | 240 | 45 | 707 | 659.5 | 25 |
| GON-2000 | G 3'' | 33.33 | 1177 | 20 | MON2000 | 240 | 45 | 862 | 814.5 | 25 |
| GON-2700 | G 3'' | 45.00 | 1589 | 20 | MON2700 | 240 | 45 | 987 | 939.5 | 25 |
| GO-3400 | DN 100 | 57.00 | 2013 | 16 | MO3400 | 360 | 45 | 871 | 810 | 30 |
| GO-4500 | DN 100 | 75.00 | 2649 | 16 | MO4500 | 360 | 45 | 926 | 865 | 30 |
| GO-5400 | DN 100 | 90.00 | 3178 | 16 | MO5400 | 360 | 45 | 1070 | 1009 | 30 |
