ION SERIES

Descriptions

The Ion flying laser marking Series machine is a high-speed continuous marking model designed to improve productivity. It has good optical modes and fast processing efficiency. The marking speed of the production line is up to 200m/min (2mm high numbers and letters on a single line), meeting the requirements of high-speed and high-productivity application identification, mainly used in the industries of production date, anti-counterfeiting, medical and food packaging. This model supports functions such as automatic coding, serial number, batch number, date, bar code, two-dimensional code, automatic skipping numbers, etc., to meet the needs of customers in different industries. It is widely used in the packaging of food and beverage, alcohol, dairy products, clothing accessories, leather, electronic components, medicine, personal care products, tobacco, chemical building materials, production and expiration date, batch number, shift, manufacturer name and logo, etc.



Model series G series (DAVI laser source)
Model G300L G300 G300D G301 G600 G800 G1000
  Laser parameters Laser source model DW-D30L DW-D35L DW-D35 DW-D35i-9.3 DW-D55 DW-T80 DW-D100
Output Power >25W >35W >40W >25W 60W 80W 100W
Beam quality M 2 ≤1.2 ≤1.2 ≤1.2 ≤1.2 ≤1.2 ≤1.3 ≤1.3
Laser wavelength 10.55~10.6 um 10.55~10.6 um 10.55~10.6 um 9.3 / 10.2 um 10.55~10.6 um 10.55~10.6 um 10.55~10.6 um
Pulse frequency 0-25 kHz
Exit beam diameter 1.8±0.2 mm
Output power stability ±5%
Working life About 20,000 working hours (non-lifetime)
  Optical properties Marking range 100~300mm (range optional)
Engraving depth ≤1mm (depending on power and time)
Engraving speed ≤10000mm/s
Repeat accuracy ±0.002
Minimum marking line width 0. 1mm
Minimum character height 0.15mm
  Environment Cooling way Standard built-in air cooling (water cooling can be customized)
System power supply 500W / 220V / 50Hz (110V can be connected)
Temperature humidity 0~40°, 30% RH 85%, air conditioner should be installed when used outside the range
Oil mist, condensation Not allowed
  Other parameters Operating system Flying laser marking system
File format The software supports text, QR code, barcode, serial number, graphics and other marking content

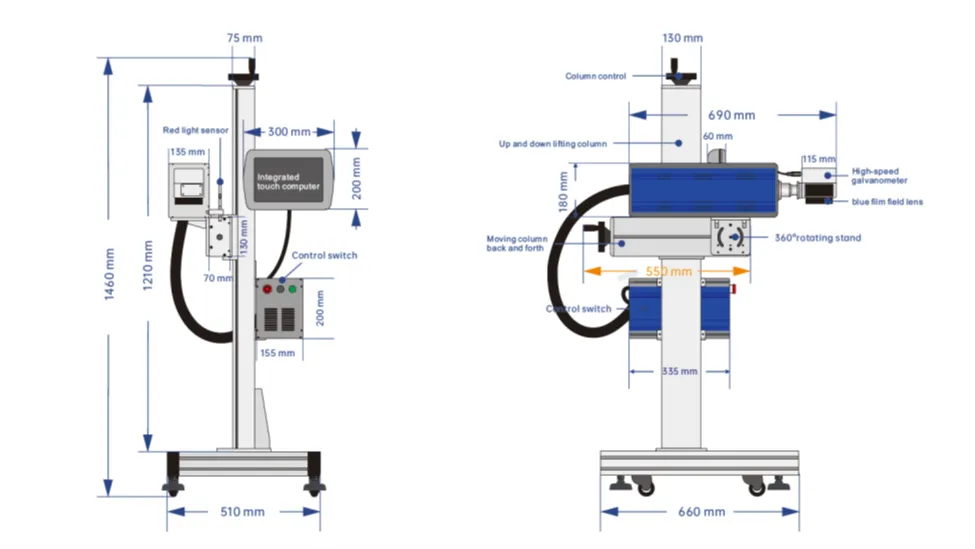

Dimension 660X510X1460 mm
Packing dimension Host: 980X600X370 mm Column: 1350X350X280 mm
Total Weight About 63kg
