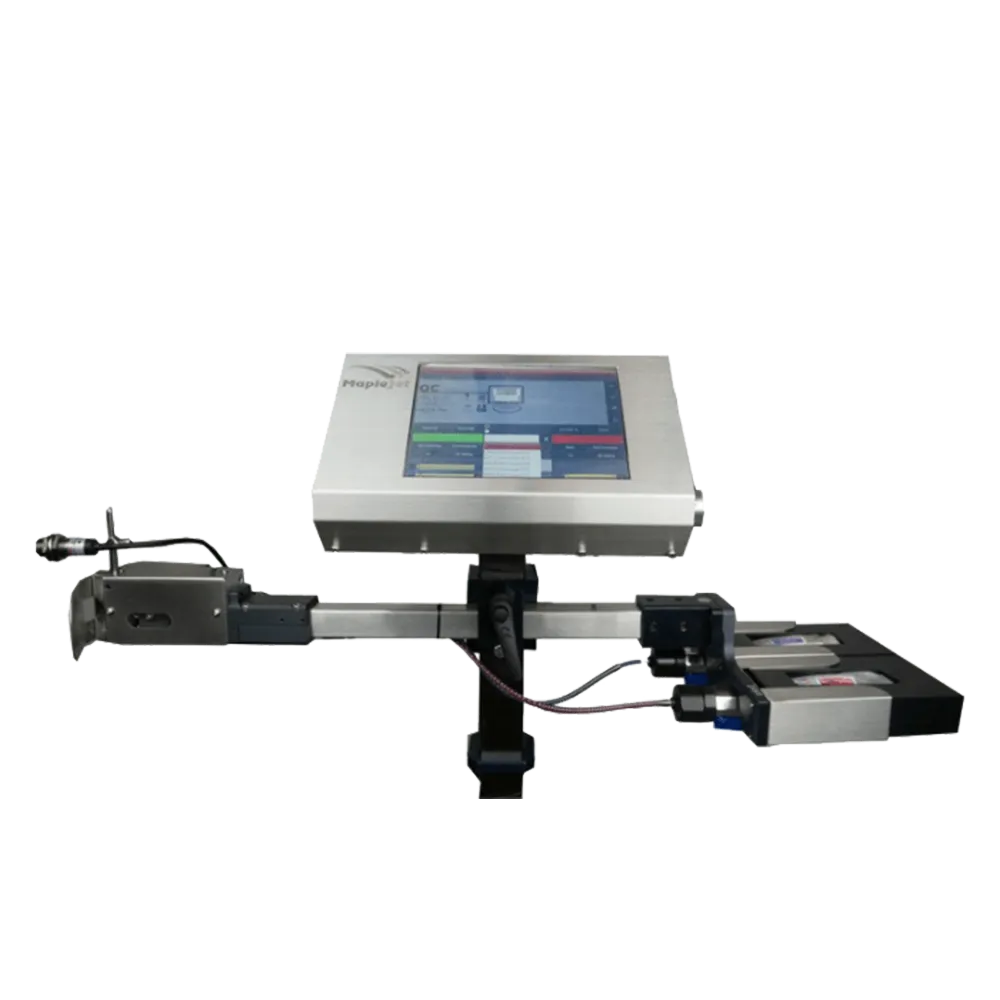

MAPLE JET PD BI COLOR
ProDigit Bi-color Carton Printer is a fast-high resolution general purpose inkjet coding printer
Do Away with Mundane Single Color Printing
Bi-color inkjet coding and marking printers are not only low-cost of ownership but also economically friendly for companies looking to save cost while branding directly on the product. It prints high-resolution logos, pictograms, text, and other important information in two colors. using a single print engine. This ability helps product manufacturers boost up their company branding and step ahead of their competitors in the industry.
Sustainable & Eco-friendly Printing
Maplejet ProDigit uses a long-lasting printhead powered by Xaar Printhead Technology. ProDigits printhead lasts for an average of two years even on continuous production. This promotes good environmental practice in avoiding disposal of toxic waste materials drawn by waste ink and plastic into the environment.
Drop on demand High-resolution Inkjet Coding Printer
Maplejet ProDigit inkjet coding machine uses piezoelectric drop-on-demand (DOD) printing technology. The printhead produces a precise amount of drops onto the material resulting in high-resolution print in almost all types of substrates compared to other DOD inkjet coding printers such as valve jet and thermal inkjet printers.
Save Cost While Printing
ProDigit inkjet coding printer offers a low cost of ownership with its simple yet industrial strength functionalities. Using durable long-lasting printheads that can save cost compared to disposable printheads of thermal inkjet printers. ProDigit printers are operator-friendly and require low maintenance to continuously produce superior print quality throughout the production.
KEY BENEFITS
- Two color printing on porous or pvc pipe materials
- Can operate single or double printheads using one controller
- Easy and simple to use and no extensive training required
- User-friendly display interface
- Design, print and store message capability
- Up to 8 number of lines with maximum speed of 40M/min
- Remote & field upgradeable with modular components and options
- Compatible on oil-based for porous surfaces or solvent-based for non-porous surfaces
Compact with industrial strength infrastructure
Specifications
| Display Screen | 8.4 Color TFT LCD with Industrial Touchscreen |
| Printing Channels | 2 Channels with Separate Messages |
| Print Module Connection | 2 Heads |
| Connectivity | To Computer, PLC, Weighing Device, Barcode Reader |
| Connection Parts | Ethernet, RS232 |
| External Database Print Capacity | More than 1 Million Records |
| Menu Language | All Languages available on request |
| Message Saving Capacity | Up to 999 Messages |
| Password Protection | Yes |
| Input Voltage | 90-240 VAC |
| Power | 60 W |
| System Diagnostic | Yes |
| Environmental Conditions | 0-50°C, Humidity 0-80% RH |
| Start & Stop Time | Immediate |
| Standard | CE, CSA & UL |
| Display Screen | 8.4 Color TFT LCD with Industrial Touchscreen |
| Resolution | 180 DPI |
| Max Print Speed | 40M/Min |
| Maximum Number of Lines | 8 |
| Height Range of Printable | 2-18 mm |
| Characters | 2-53 mm |
| Printable Languages | All available on request |
| Number of Fonts | Six pre-loaded fonts (user-defined) |
| Logo Printing Option | Yes |
| Message Component | Text + Date + Time + Logo + Counter + Shift + Barcode |
| Combination | External Data + Lot Number + Basic Shapes |
| Auto Update | Production & Expiry Date, Time, Shift, External Data |
| Barcode | All major Barcode symbologies supported (1D, 2D & GS1) |
| Print Module Angle Adjustment | 0-180° |
| Ink Consummation Control System | Yes |
| Counter | Various Counter Options |
| Display Screen | 8.4 Color TFT LCD with Industrial Touchscreen |
| Resolution | 180 DPI |
| Max Print Speed | 40M/Min |
| Maximum Number of Lines | 8 |
| Height Range of Printable | 2-18 mm |
| Characters | 2-53 mm |
| Printable Languages | All available on request |
| Standard Software Options | Flexi Code Message Design Software, Remote Manager Data Management Software |
| Connectivity With Third Party Software | Yes |
| Ink Supply System | Dual Cartridge Based Ink System (180 ml each) |
| Ink Types | Oil based |
| Ink Colour Options | Black, White, Red, Blue, Yellow |
| Display Screen | 8.4 Color TFT LCD with Industrial Touchscreen |
| Resolution | 180 DPI |
| Max Print Speed | 40M/Min |
| Ink Supply System | Hybrid Ink System (Auto Priming) Heater & Agitation System |
| Encoder | Yes |

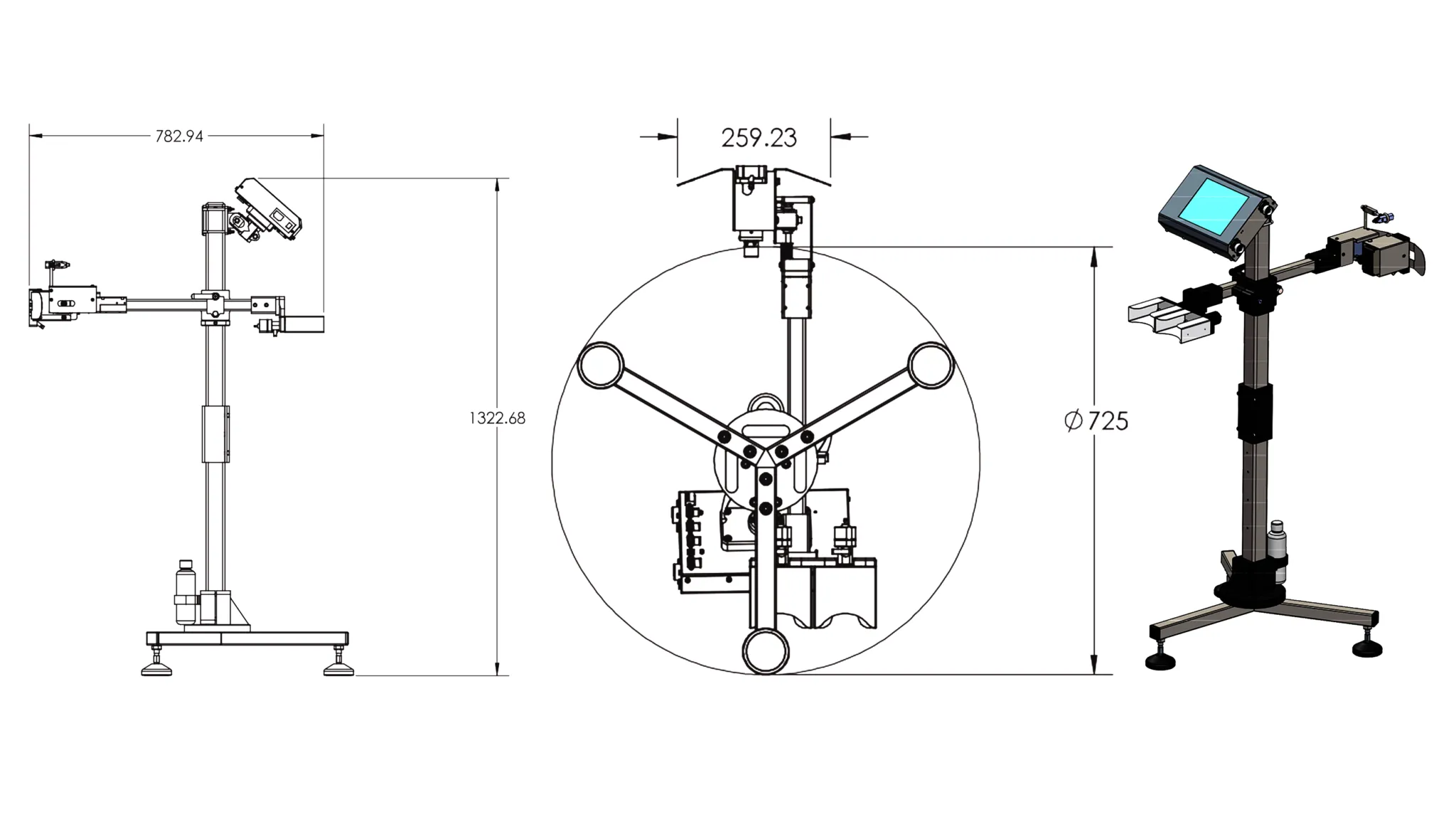

| Support Option | Stainless Steel Stand, Aluminum Stand, T-Bracket |
| Conveyor | Various sizes and designs available on request |
| Ink Types | Oil based |
| Ink Colour Options | Black, White, Red, Blue, Yellow |
| Body Material | Stainless Steel |
| Weight with Stand | 21 KG |
| Controller Dimension | 300*192*60 mm |
