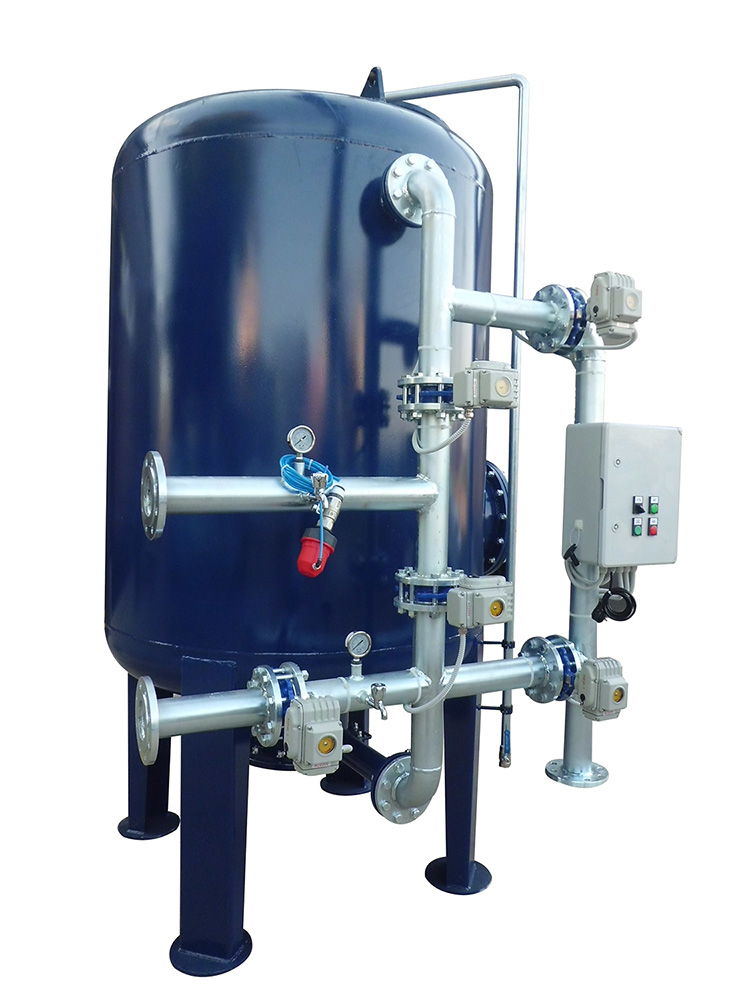

• Epoxy painted carbon steel tank

• Aqualine brand coconut based active carbon

• Maximum operation pressure is 6 bar

• Timer controlled back wash

• Pneumatic actuated butterfly valves (Optional electrical actuated valves)

• C-1215 and C-1615 bottom collect structure is lateral diffuser

• Between the C-2015 and C-2815 bottom collect structure is plate type with KSH diffusers

• PVC-U material surface piping (Optional galvanised surface piping)

• Sample taps and manometers in the inlet and outlet of the system

• PLC based Siemens logo control panel (Optional touch screen)

• Electric 220V /50 Hz /1 pH

• Required dry instrument air for the opreation of pneumatic valves are the customers procurement. Recommended minimum compressor capacity is 100 Lt/min @ 8 bar.
