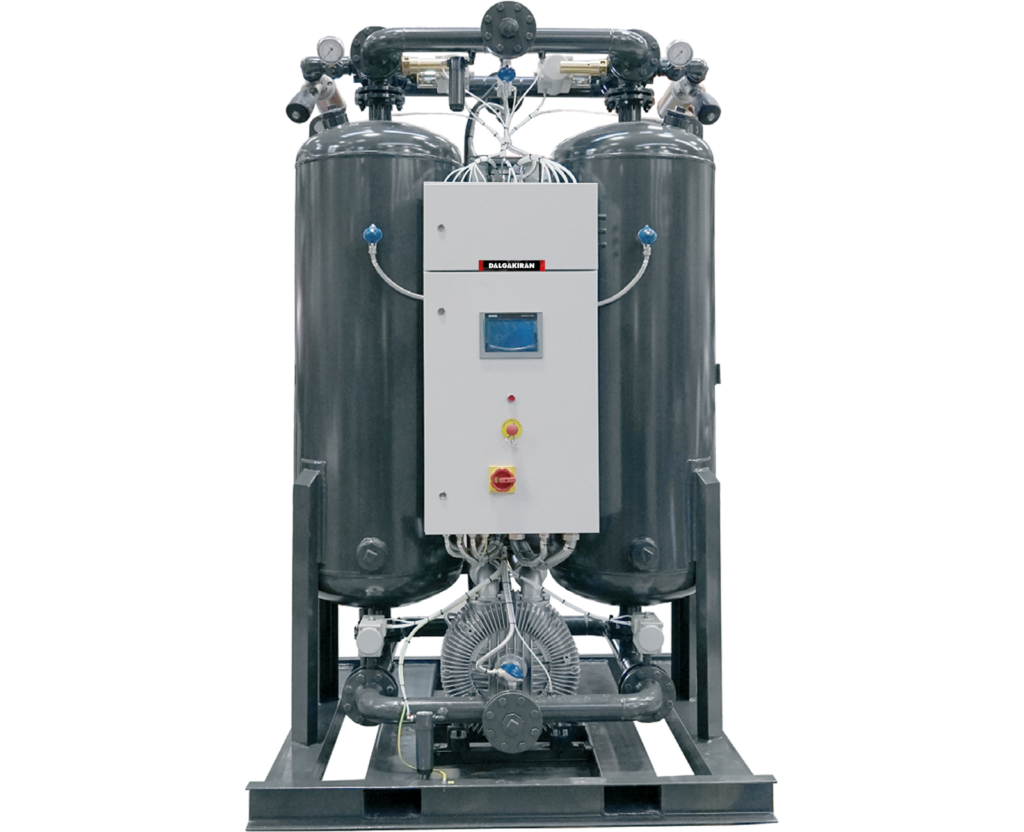

DBP Blower Purge Adsorption Compressed Air Dryers
Advantages
• Dew point monitoring and control
• Computer control
• Status, alarm and pressure display
• Remote start and stop
• Low-pressure alarm
• High-pressure switches and alarms
• Externally heated or heat-free operation
• Reliable electronic control units
• User friendly
• Different language options
They use a blower to draw in the ambient air and pass it through a heater.
The heated air is sent in the opposite direction to the drying flow. This removes the moisture from the chemical substance pores. The advanced control system continuously monitors dew point and adjusts the temperature. This results in energy savings. The heater is insulated for high energy efficiency.
TECHNICAL SPECIFICATIONS
| Model | Max. Pressure | Capacity | Connection | Filter | Voltage | Dimensions (mm) | Controller | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| bar | psi | m³/min | cfm | (V/ph/Hz) | Length | Width | Height | ||||
| DBP 850 | 10 | 145 | 14,20 | 500 | G 2" | Included | 400 / 3 / 50 | 1296 | 1180 | 2299 | Schneider |
| DBP 1000 | 10 | 145 | 16,70 | 589 | G 2" | Included | 400 / 3 / 50 | 1200 | 1310 | 2415 | Schneider |
| DBP 1250 | 10 | 145 | 20,80 | 736 | DN80 | Included | 400 / 3 / 50 | 1610 | 1270 | 2468 | Schneider |
| DBP 1500 | 10 | 145 | 25,00 | 883 | DN80 | Included | 400 / 3 / 50 | 1610 | 1270 | 2563 | Schneider |
| DBP 1800 | 10 | 145 | 30,00 | 1059 | DN80 | Included | 400 / 3 / 50 | 1563 | 1515 | 2479 | Schneider |
| DBP 2200 | 10 | 145 | 36,70 | 1295 | DN80 | Included | 400 / 3 / 50 | 1563 | 1455 | 2789 | Schneider |
| DBP 2700 | 10 | 145 | 45,00 | 1589 | DN80 | Included | 400 / 3 / 50 | 1615 | 1514 | 2836 | Schneider |
| DBP 3200 | 10 | 145 | 53,30 | 1883 | DN100 | Included | 400 / 3 / 50 | 1710 | 1660 | 3054 | Schneider |
| DBP 3600 | 10 | 145 | 60,00 | 2119 | DN100 | Included | 400 / 3 / 50 | 1710 | 1660 | 3268 | Schneider |
| DBP 4400 | 10 | 145 | 73,30 | 2590 | DN100 | Included | 400 / 3 / 50 | 1975 | 2492 | 2910 | Schneider |
| DBP 5000 | 10 | 145 | 83,30 | 2943 | DN150 | Included | 400 / 3 / 50 | 2045 | 2560 | 3382 | Schneider |
| DBP 6300 | 10 | 145 | 105,00 | 3708 | DN150 | Included | 400 / 3 / 50 | 2090 | 2963 | 3328 | Schneider |
| DBP 7200 | 10 | 145 | 120,00 | 4238 | DN150 | Included | 400 / 3 / 50 | 2020 | 3363 | 3047 | Schneider |
| DBP 8800 | 10 | 145 | 146,70 | 5179 | DN150 | Included | 400 / 3 / 50 | 2020 | 3363 | 3341 | Schneider |
| DBP 10800 | 10 | 145 | 180,00 | 6357 | DN200 | Included | 400 / 3 / 50 | 2492 | 3481 | 3765 | Schneider |
| DBP 12000 | 10 | 145 | 200,00 | 7063 | DN200 | Included | 400 / 3 / 50 | * | * | * | Schneider |
| DBP 16000 | 10 | 145 | 267,00 | 9429 | DN200 | Included | 400 / 3 / 50 | * | * | * | Schneider |
