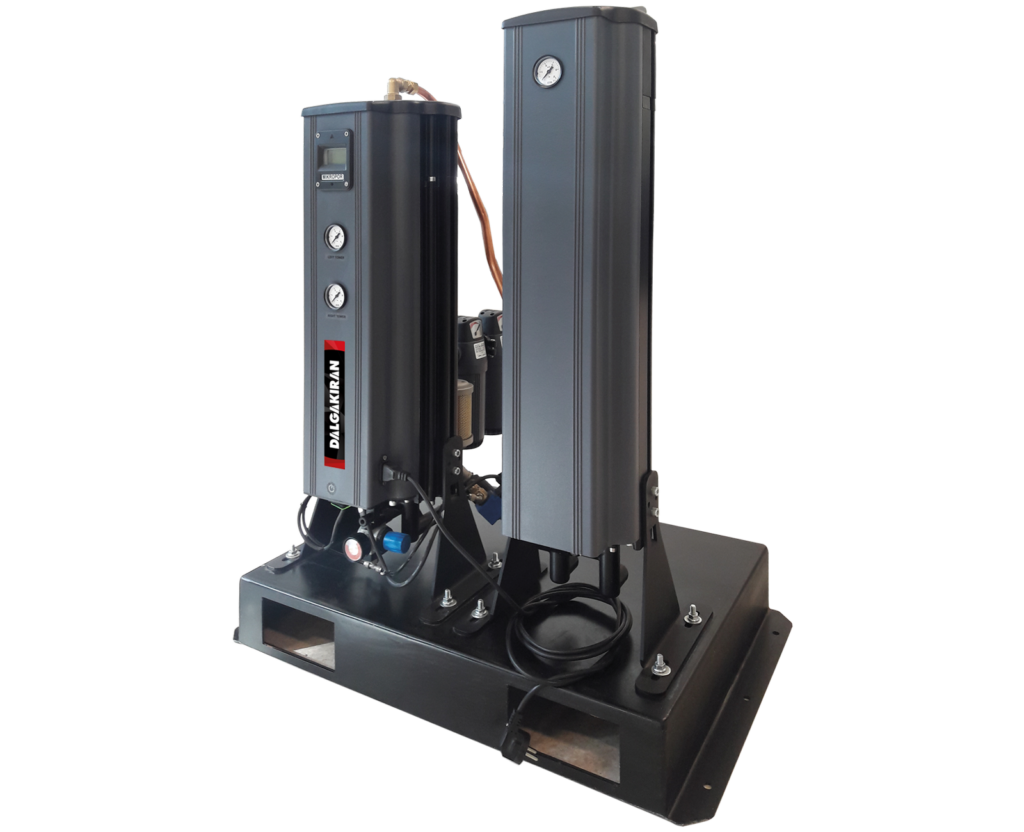

DBS Medical Air Dryer

High-quality compressed air is crucial to many industries and plays a particularly vital role in breathing air applications. It is designed to be used as an addition to your plant air source by converting compressed air to breathable air for those individuals working in and around a hazardous process. Dalgakıran breathing air purifiers are designed to destroy harmful substances in the air in accordance with applicable standards.

Model	Capacity		Max. Pressure (bar)	Connection Size	Filter	Voltage
Model	m³/min	cfm	Max. Pressure (bar)	Connection Size	Filter	Voltage
DBS 5	0,17	5	16	G 1/2"	Included	230/1/50-60	MODULAR
DBS 10	0,33	10	16	G 1/2"	Included	230/1/50-60
DBS 15	0,42	15	16	G 1/2"	Included	230/1/50-60
DBS 20	0,58	20	16	G 1/2"	Included	230/1/50-60
DBS 25	0,75	25	16	G 1/2"	Included	230/1/50-60
DBS 30	0,83	30	16	G 1/2"	Included	230/1/50-60
DBS 40	1,17	30	16	G 1 1/2"	Included	230/1/50-60
DBS 50	1,42	50	16	G 1 1/2"	Included	230/1/50-60
DBS 60	1,67	60	16	G 1 1/2"	Included	230/1/50-60
DBS 75	2,17	75	16	G 1 1/2"	Included	230/1/50-60
DBS 100	2,83	100	16	G 1 1/2"	Included	230/1/50-60
DBS 120	3,33	120	16	G 1 1/2"	Included	230/1/50-60
DBS 180	5	180	16	G 1 1/2"	Included	230/1/50-60
DBS 240	6,67	240	16	G 1 1/2"	Included	230/1/50-60
DBS 250	7,33	250	16	G 1 1/2"	Included	230/1/50-60	TWIN TOWER
DBS 300	9,6	300	16	G 1 1/2"	Included	230/1/50-60
DBS 400	11,3	400	16	G 2''	Included	230/1/50-60
DBS 500	14,2	500	16	G 2''	Included	230/1/50-60
DBS 600	16,7	600	16	G 2''	Included	230/1/50-60
DBS 700	20,8	700	16	DN80	Included	230/1/50-60
DBS 800	25	800	16	DN80	Included	230/1/50-60
DBS 1000	28,3	1000	16	DN80	Included	230/1/50-60
DBS 1250	36,7	1250	16	DN80	Included	230/1/50-60
