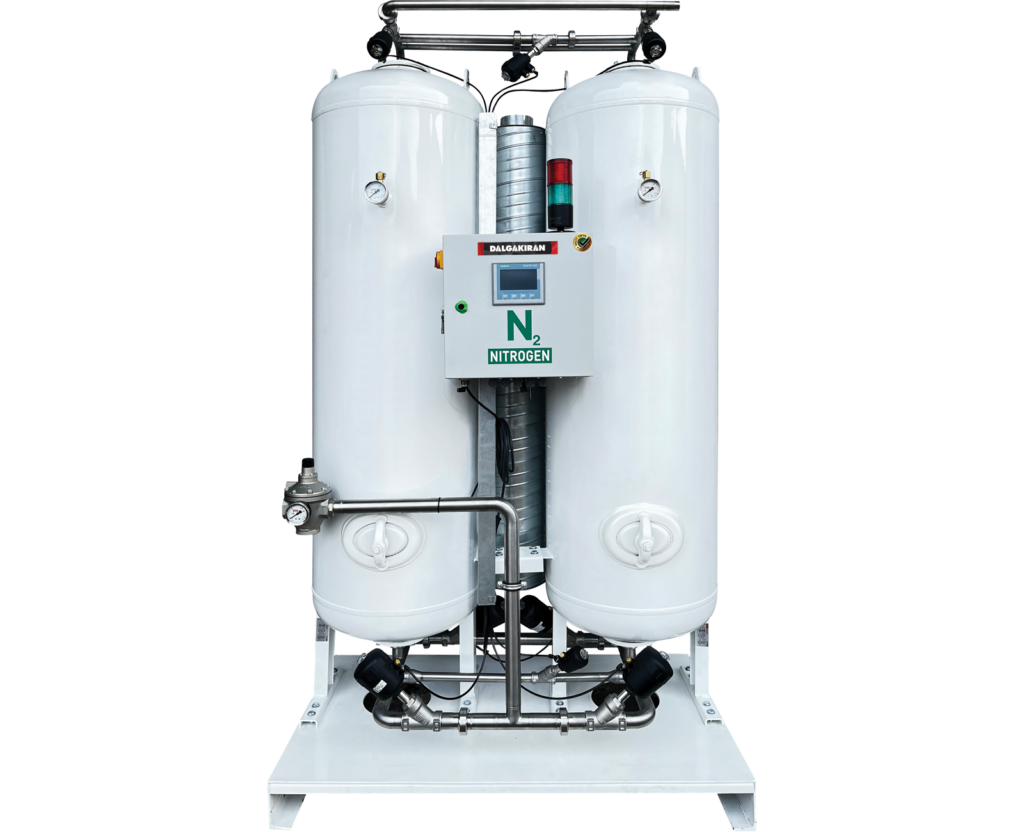

DGN Nitrogen Generators

Stainless steel pipes and process valves
Zirconia oxygen sensor
Outlet pressure sensor
Visual & Audio alarm for low purity
Visual & Audio alarm for low pressure
Visual alarm for periodical maintenance
Automatic start/stop
Outlet nitrogen regulator
Outlet nitrogen needle valve
Advanced energy saving kit
Siemens S/ 1200 PLC

Thanks to the PSA technology utilized by Dalgakıran nitrogen generators, you can produce nitrogen gas with up to 99.999% purity within the capacity range of 0.5-5000 Nm³/h.

These generators produce nitrogen from the compressed air available. The compressed air is cleaned by pre-filtration which eliminates impurities, such as humidity, oil vapours, particles and hydrocarbons.

The filrated compressed air is directed to two CMS filled columns. While the compressed air is passing through the generator, the oxygen and carbon dioxide molecules are removed and the pressure dew point is lowered. The generated nitrogen gas is clean, dry and of high purity so that it can be used for a wide variety of applications.

The parameters such as compressed air temperature, pressure, nitrogen purity and nitrogen pressure are all monitored continuously. Dalgakıran nitrogen generators guarantee sustainable and high efficiency production.

Tablo Örneği

Model	Free Nitrogen Delivery @ Following Purity Level (Nm³/min)
Model	95,00%	97,00%	98,00%	99,00%	99,50%	99,90%	99,99%	99,995%	99,999%
DGN 25	0,097	0,082	0,070	0,053	0,042	0,027	0,017	0,012	0,008
DGN 50	0,182	0,148	0,133	0,100	0,083	0,053	0,025	0,020	0,017
DGN 80	0,283	0,225	0,202	0,153	0,133	0,082	0,042	0,030	0,023
DGN 100	0,350	0,292	0,267	0,215	0,167	0,108	0,055	0,042	0,032
DGN 150	0,525	0,433	0,400	0,317	0,250	0,158	0,083	0,062	0,042
DGN 250	0,833	0,675	0,597	0,475	0,417	0,217	0,108	0,083	0,058
DGN 400	1,417	1,000	0,917	0,800	0,667	0,417	0,217	0,158	0,100
DGN 500	1,800	1,417	1,300	1,083	0,833	0,630	0,395	0,282	0,178
DGN 700	2,417	2,000	1,667	1,333	1,167	0,805	0,467	0,352	0,238
DGN 1000	3,583	2,917	2,467	1,917	1,667	1,200	0,700	0,527	0,357
DGN 1200	4,333	3,583	3,167	2,417	2,000	1,450	0,850	0,650	0,450
DGN 1700	6,250	5,167	4,500	3,467	2,833	2,167	1,250	0,933	0,642
DGN 2000	7,417	6,167	5,333	4,033	3,333	2,533	1,483	1,117	0,750
DGN 3000	10,583	8,750	7,667	6,000	5,000	3,617	2,100	1,583	1,083
DGN 4000	15,333	12,667	11,000	8,333	6,667	5,217	3,033	2,292	1,563
DGN 5500	19,167	15,833	13,883	10,583	9,167	6,533	3,783	2,867	1,942
DGN 6500	23,000	19,000	16,500	12,583	10,833	7,833	4,550	3,448	2,333
DGN 7500	26,667	22,083	19,333	14,667	12,500	9,417	5,417	4,083	2,783
DGN 8500	30,500	25,250	22,083	16,667	14,167	10,417	6,033	4,583	3,108
DGN 10000	38,333	31,667	27,500	21,000	16,667	12,333	7,583	5,733	3,867
DGN 12500	45,833	37,917	33,083	25,000	20,833	15,750	9,167	6,917	4,700
