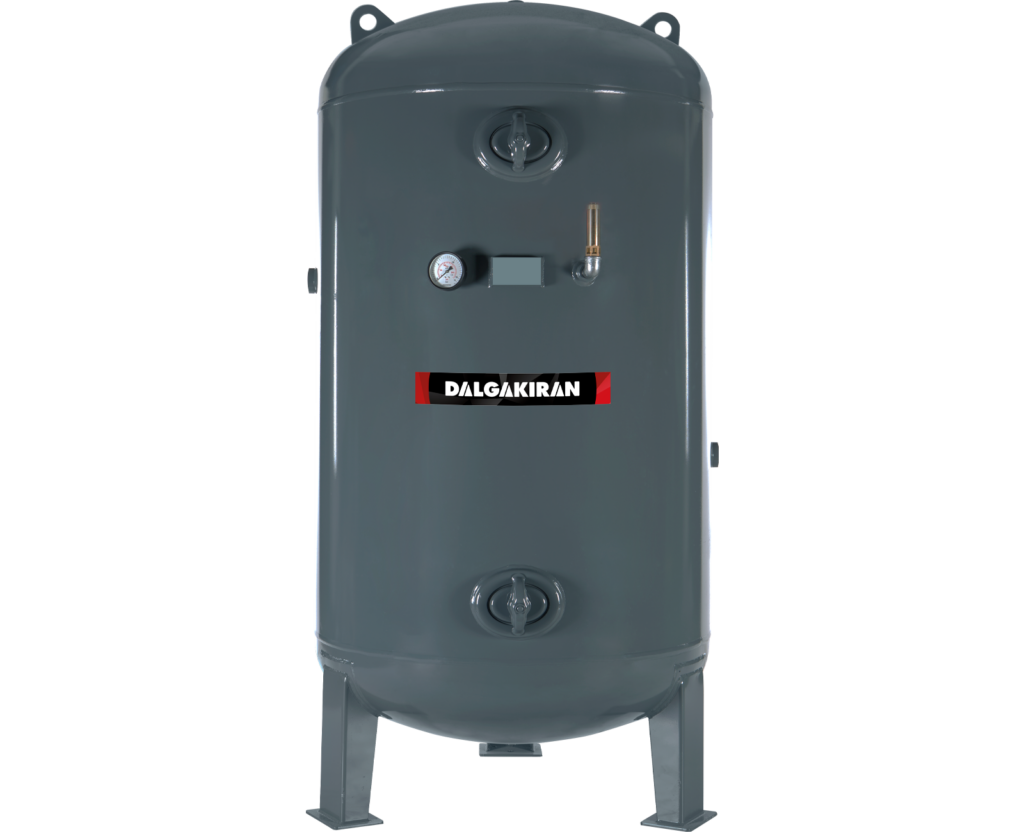

DHT Air Receiver
Advantages
• They allow the system to respond quickly to high and sudden consumption
• A key component of compressed air systems
• Storage function
• Reduces system pressure fluctuations
• Increases efficiency
• Galvanized and stainless steel options
• Energy saving
• Highly durable with a long service life
Air tanks are used for storage in compressed air systems.
They prevent pressure fluctuations in the system and eliminate inefficiencies especially in fix speed compressor applications.
TECHNICAL SPECIFICATIONS
| Model | Volume L | Pressure bar | Configuration | Diameter | Height | Connection Inlet / Outlet |
|---|---|---|---|---|---|---|
| DHT 100 | 100 | 10 | VERTICAL | 324 | 1564 | G 1" |
| 15 | VERTICAL | 324 | 1564 | G 1" | ||
| DHT 200 | 200 | 10 | VERTICAL | 450 | 1618 | G 1" |
| 15 | VERTICAL | 450 | 1618 | G 1" | ||
| DHT 300 | 300 | 10 | VERTICAL | 450 | 1918 | G ¾" |
| 15 | VERTICAL | 450 | 1918 | G ¾" | ||
| 40 | VERTICAL | 450 | 2012 | G 1" | ||
| DHT 500 | 500 | 10 | VERTICAL | 642 | 1980 | G 1" |
| 15 | VERTICAL | 642 | 1970 | G 1" | ||
| 40 | VERTICAL | 642 | 2083 | G 1 ¼" | ||
| DHT 900 | 900 | 10 | VERTICAL | 800 | 2120 | G 1 ½" |
| DHT 1000 | 1000 | 10 | VERTICAL | 850 | 2120 | G 1 ½" |
| 15 | VERTICAL | 850 | 2120 | G 1 ½" | ||
| 40 | VERTICAL | 850 | 2120 | G 1 ½" | ||
| DHT 1800 | 1800 | 10 | VERTICAL | 1150 | 2150 | G 2" |
| 15 | VERTICAL | 1150 | 2150 | G 2" | ||
| DHT 2000 | 2000 | 10 | VERTICAL | 1080 | 2566 | G 2" |
| 15 | VERTICAL | 1080 | 2566 | G 2" | ||
| 15 | VERTICAL | 1150 | 2240 | G 2" | ||
| DHT 3000 | 3000 | 10 | VERTICAL | 1400 | 2370 | G 2 ½" |
| 15 | VERTICAL | 1400 | 2370 | G 2 ½" | ||
| HAR 4000 | 4000 | 10 | VERTICAL | 1400 | 3120 | G 3" |
| 15 | VERTICAL | 1400 | 3120 | G 3" | ||
| DHT 5000 | 5000 | 10 | VERTICAL | 1400 | 3870 | G 3" |
| 15 | VERTICAL | 1400 | 3870 | G 3" | ||
| DHT 6000 | 6000 | 10 | VERTICAL | 1500 | 3930 | G 3" |
| 15 | VERTICAL | 1500 | 3930 | G 3" | ||
| DHT 8000 | 8000 | 10 | VERTICAL | 1750 | 4040 | DN100 |
| 15 | VERTICAL | 1750 | 4040 | DN100 | ||
| DHT 10000 | 10000 | 10 | VERTICAL | 1900 | 4100 | DN100 |
| 15 | VERTICAL | 1900 | 4100 | DN100 |
