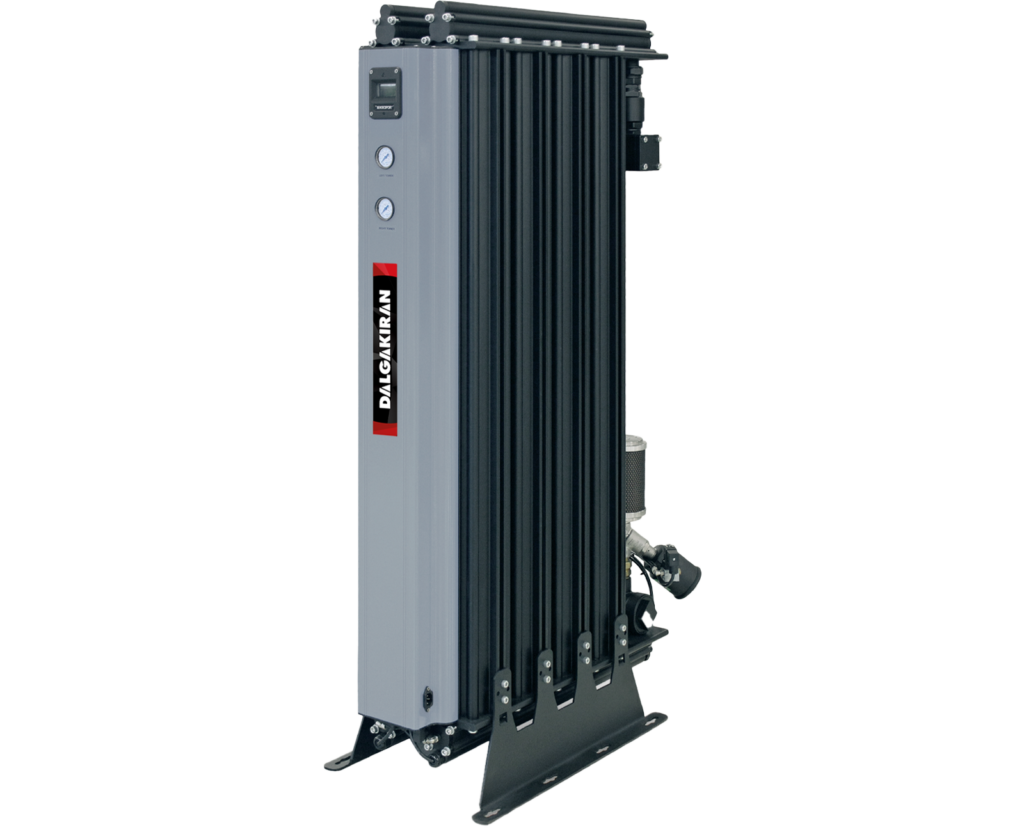

DMD Modular Adsorption Compressed Air Dryers

• Low footprint, lightweight, compact design

• Corrosion-resistant aluminium structure

• Problem-free and reliable electronic control

• Can be mounted on the floor, bench, or wall

• Suitable layout for any workplace

• Easy to install and maintain

• High efficiency and flexibility

• Energy efficient

• Dew point from -40°C to -70°C (optional)

DMD model adsorption dryers use a modular design for a lightweight, compact body.

Having half the size and weight of traditional twin-tower adsorption dryers, they provide users with the advantage of flexible installation. This is one of the adsorption air dryer models with the lowest pressure drop in the world with its highly engineered inlet valve and discharge manifold design.

Model	Max. Pressure		Capacity		Connection	Filter	Voltage	Dimensions (mm)			Weight	Controller
Model	bar	psi	m³/min	cfm	Connection	Filter	(V/ph/Hz)	Length	Width	Height	kg	Controller
DMD 3	16	232	0,08	3	G 1/2	Included	230/1/50-60	336	320	558	17	Crouzet Millenium 3
DMD 5	16	232	0,17	6	G 1/2"	Included	230/1/50-60	320	320	633	19	Crouzet Millenium 3
DMD 10	16	232	0,33	12	G 1/2"	Included	230/1/50-60	320	320	908	27	Crouzet Millenium 3
DMD 15	16	232	0,42	15	G 1/2"	Included	230/1/50-60	350	370	808	31	Crouzet Millenium 3
DMD 20	16	232	0,58	21	G 1/2"	Included	230/1/50-60	350	370	1108	42	Crouzet Millenium 3
DMD 25	16	232	0,75	26	G 1/2"	Included	230/1/50-60	350	370	1258	48	Crouzet Millenium 3
DMD 30	16	232	0,83	29	G 1/2"	Included	230/1/50-60	350	370	1508	54	Crouzet Millenium 3
DMD 40	16	232	1,17	41	G 1 1/2"	Included	230/1/50-60	495	410	1250	71	Crouzet Millenium 3
DMD 50	16	232	1,42	50	G 1 1/2"	Included	230/1/50-60	495	410	1400	78	Crouzet Millenium 3
DMD 60	16	232	1,67	59	G 1 1/2"	Included	230/1/50-60	495	410	1750	92	Crouzet Millenium 3
DMD 75	16	232	2,17	77	G 1 1/2"	Included	230/1/50-60	622	430	1300	120	Crouzet Millenium 3
DMD 100	16	232	2,83	100	G 1 1/2"	Included	230/1/50-60	622	430	1450	133	Crouzet Millenium 3
DMD 120	16	232	3,33	118	G 1 1/2"	Included	230/1/50-60	622	430	1750	152	Crouzet Millenium 3
DMD 180	16	232	5	177	G 1 1/2"	Included	230/1/50-60	734	410	1499	186	Crouzet Millenium 3
DMD 240	16	232	6,67	235	G 1 1/2"	Included	230/1/50-60	889	410	1497	235	Crouzet Millenium 3
DMD 340	16	232	9,6	340	2"	*	230/1/50-60	994	400	1654	*	Crouzet Millenium 3
DMD 400	16	232	11,3	400	2"	*	230/1/50-60	1335	400	1554	*	Crouzet Millenium 3
DMD 500	16	232	14,2	500	2"	*	230/1/50-60	1505	400	1654	*	Crouzet Millenium 3
DMD 590	16	232	16,7	590	2"	*	230/1/50-60	1675	400	1754	*	Crouzet Millenium 3
DMD 735	16	232	20,8	735	3"	*	230/1/50-60	1675	400	2054	*	Crouzet Millenium 3
DMD 890	16	232	25	890	3"	*	230/1/50-60	1845	400	2054	*	Crouzet Millenium 3
DMD 1060	16	232	30	1060	3"	*	230/1/50-60	2015	400	2054	*	Crouzet Millenium 3
