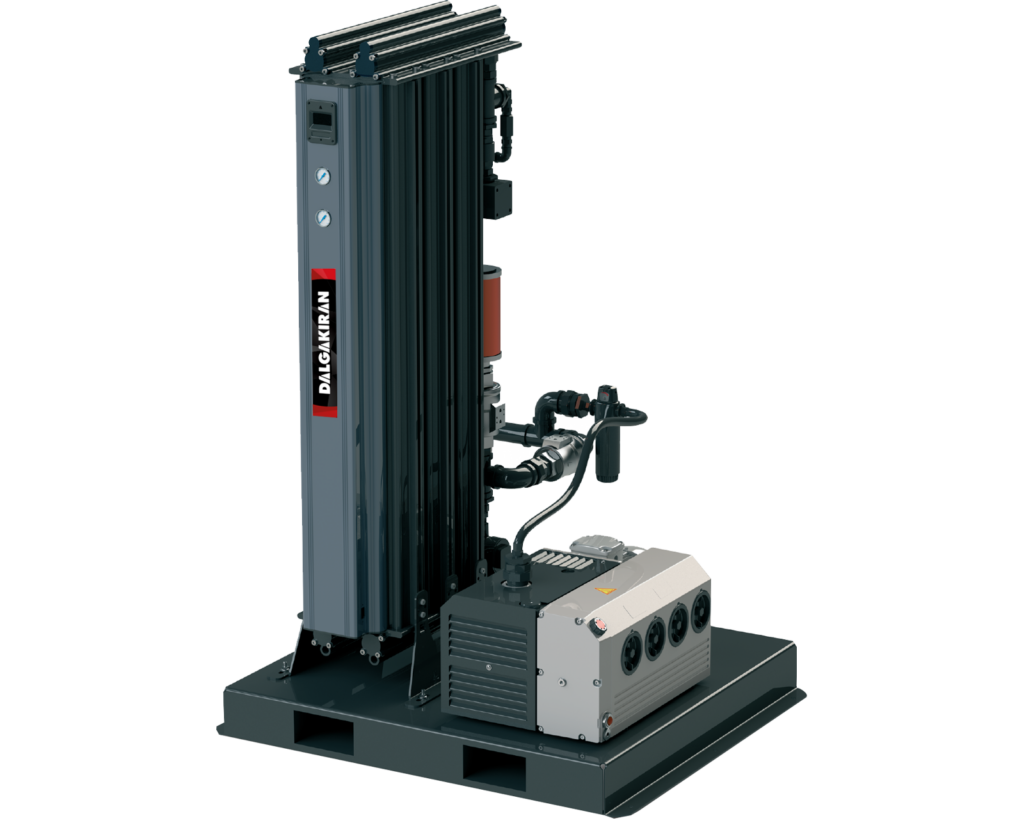

The DMD-VP Series modular, vacuum purge heatless desiccant air dryers remove water vapour from the compressed air, stop corrosion, and prevent the growth of micro-organisms when supplying the clean air crucial for production. DMD-VP Series air dryers efficiently and reliably supply the system with high-quality dry air with a dew point of -40 °C or optionally a dew point of -70 °C. This extends the machinery’s life span, keeps maintenance costs to a minimum, and results in safe and healthy production. The new vacuum purge technology minimises air loss during regeneration and optimises production levels.
Model | Capacity | Vacuum Pump | Filter | Connection | Voltage | Max. Working Pressure |
---|---|---|---|---|---|---|
m³/min | cfm | V | bar | |||
DMD-VP-60 | 1,66 | 1,1 | Included | 11/2" | 400/3/50 | 16 |
DMD-VP-75 | 2,16 | 1,1 | Included | 11/2" | 400/3/50 | 16 |
DMD-VP-100 | 2,83 | 1,3 | Included | 11/2" | 400/3/50 | 16 |
DMD-VP-120 | 3,33 | 2,2 | Included | 11/2" | 400/3/50 | 16 |
DMD-VP-180 | 5 | 2,2 | Included | 11/2" | 400/3/50 | 16 |
DMD-VP-240 | 6,66 | 3 | Included | 11/2" | 400/3/50 | 16 |
DMD-VP-340 | 9,58 | 4 | Included | 11/2" | 400/3/50 | 16 |
DMD-VP-400 | 11,33 | 4 | Included | 2" | 400/3/50 | 16 |
DMD-VP-500 | 14,16 | 5,5 | Included | 2" | 400/3/50 | 16 |
DMD-VP-590 | 16,66 | 5,5 | Included | 2" | 400/3/50 | 16 |
DMD-VP-740 | 20,83 | 7,5 | Included | 3" | 400/3/50 | 16 |
