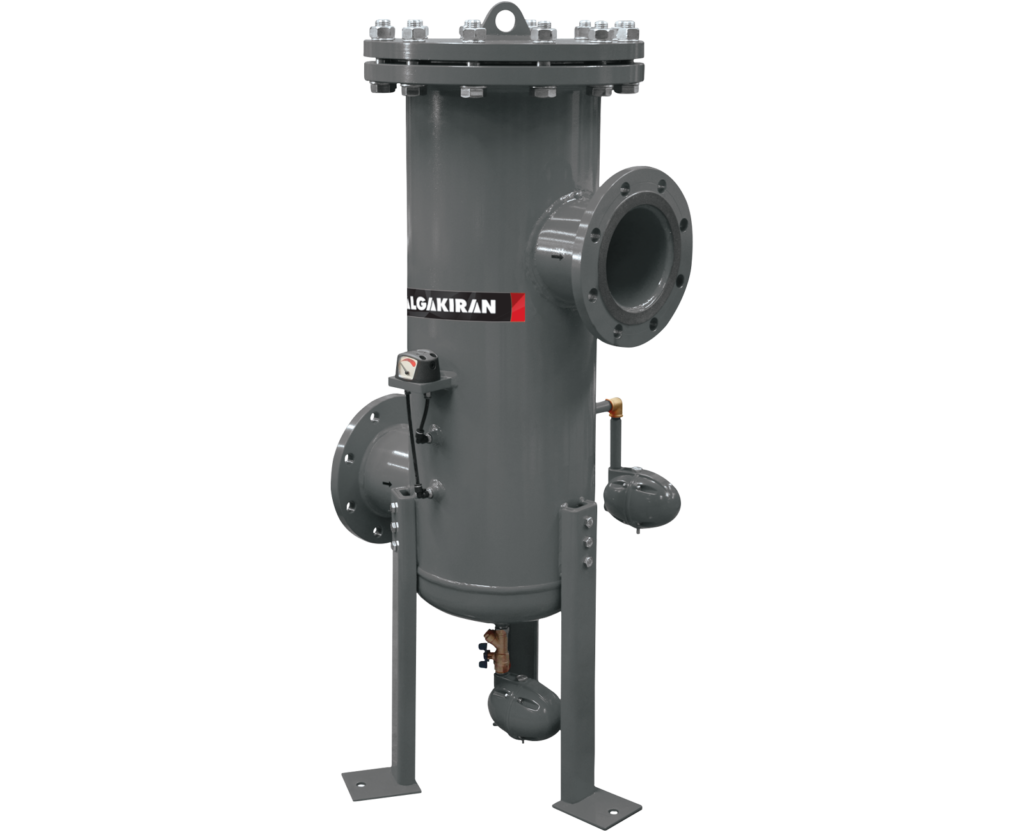

F Flanged Compressed Air Filters

• Simple design to replacement to internal element

• Two external float drains for excellent drainage

• CE and ASME tank options

• Low pressure drop

• Durable epoxy powder coating and rust-preventing anodised interior surface coating

• Strong welds

• Long service life

They filter unwanted substances in the compressed air before they go to the system.

Model	Capacity		Connection Size	Drain Port Size	Maximum Working Pressure	Element Model	Number Of Elements	Housing Dimensions (mm)
Model	m³/min	cfm	Connection Size	Drain Port Size	bar	Element Model	Number Of Elements	A	B	C	D	E
F 3600	60	2119	DN100	G ½”	14	M1200	3	450	1317	277	767	650
F 4800	80	2825	DN100	G ½”	14	M1200	4	530	1344	279	769	650
F 7200	120	4238	DN150	G ½”	14	M1200	6	580	1425	331	769	650
F 9600	160	5650	DN150	G ½”	14	M1200	8	650	1439	333	798	650
F 12000	200	7063	DN200	G ½”	14	M1200	10	750	1504	345	825	650
F 16800	280	9888	DN200	G ½”	14	M1200	14	800	1545	383	833	650
F 19200	320	11301	DN250	G ½”	14	M1200	16	850	1583	417	862	650
F 20400	340	12007	DN300	G ½”	14	M1200	17	850	1680	447	887	650
F 27600	460	16245	DN350	G ½”	14	M1200	23	850	1778	487	917	650
F 33600	560	19776	DN350	G ½”	14	M1200	28	850	1778	487	917	650
