Fiber flying laser marking machine series

Description
The T series fiber flying laser printer is a high-speed continuous marking machine designed to improve productivity. It adopts MAX industrial-grade high-performance laser source which are with stable performance, fast processing efficiency and marking speed on the production line. It can reach high speed up to 200 meters per minute (single-line 2MM-high numbers and letters) with high-yield application identification requirements, it mainly used in production date, anti-counterfeiting, medical and food packaging industries. This model supports functions such as automatic encoding, serial number, batch number, date, barcode, two-dimensional code, automatic number skipping, etc., to meet the needs of customers in different industries .


Model serials | T serial(MAX laser source) | |||||||||
Model | T200 | T201 | T300 | T301 | T500 | T501 | T700 | T701 | T1000 | |
Laser parameters | Laser source model | MFP-20G/20X | MFP-20W | MFP-30X | MFP-30W | MFP-50X | MFP-50W | MAC-70M | MFP-70W | MFP-100W |
Output Power | 18.5W | 20.5W | 30W | 30W | 50W | 50W | 70W | 70W | 100W | |
Beam quality M 2 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.6 | ≤1.6 | ≤1.6 | ≤1.6 | ≤1.6 | ≤2 | |
Pulse repetition frequency | 27-60 kHz | 30-60 kHz | 30-60 kHz | 30-60 kHz | 50-170 kHz | 45-170 kHz | 50-170 kHz | 50-170 kHz | 20-200 kHz | |
Laser wavelength | 1064±5 | |||||||||
Output power stability | <3% | |||||||||
Working life | About 100,000 working hours (non-lifetime) | |||||||||
Optical properties | Marking range | 100~300mm (range optional) | ||||||||
Engraving depth | ≤1mm (depending on power and time) | |||||||||
Engraving speed | ≤10000mm/s | |||||||||
Repeat accuracy | ±0.002 | |||||||||
Minimum marking line width | 0. 1mm | |||||||||
Minimum character height | 0.15mm | |||||||||
Use environment | Cooling way | Built-in air cooling | ||||||||
System power supply | 500W / 220V / 50Hz (110V can be connected) | |||||||||
Temperature humidity | 0~40°, 30% RH 85%, air conditioner should be installed when used outside the range | |||||||||
Oil mist condensation | Not allowed | |||||||||
Other parameters | Operating system | Fly control system | ||||||||
File format | The software supports text, QR code, barcode, serial number, graphics and other marking content | |||||||||

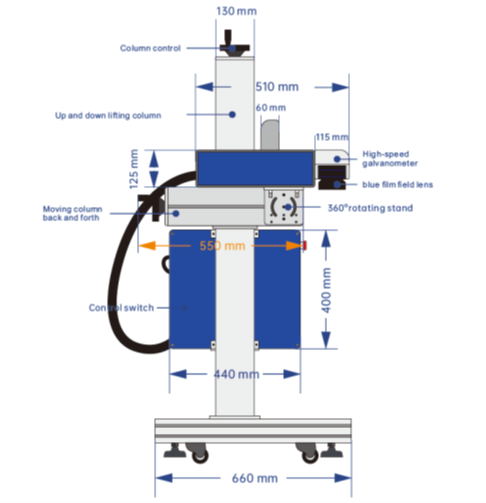

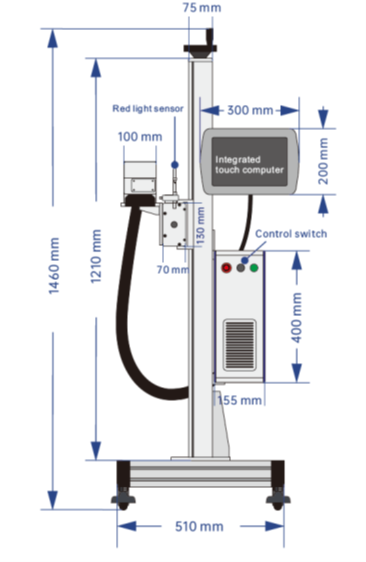

Dimensions | 660X510X1460 mm | |||||||||
Packing size | Host: 790X740X350mm Column: 1350X350X280mm | |||||||||
Total Weight | About 66kg |
Scope of Application

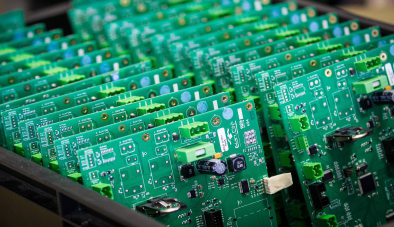

Electrical components and
electronic devices
electronic devices

Electrical components

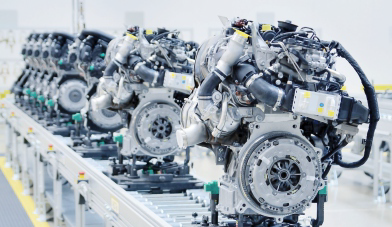

Aviation and automobiles

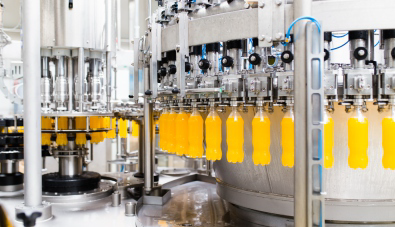

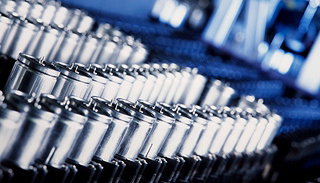

Food and beverages and
fast moving consumer goods
fast moving consumer goods

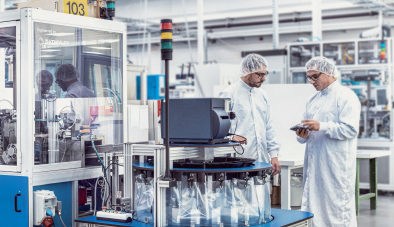

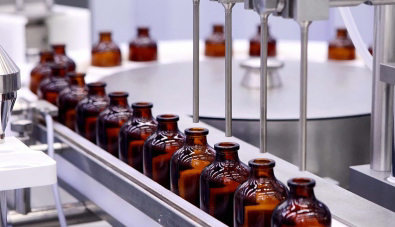

Medicines and medical devices

Cosmetics, personal and
home care products
home care products
