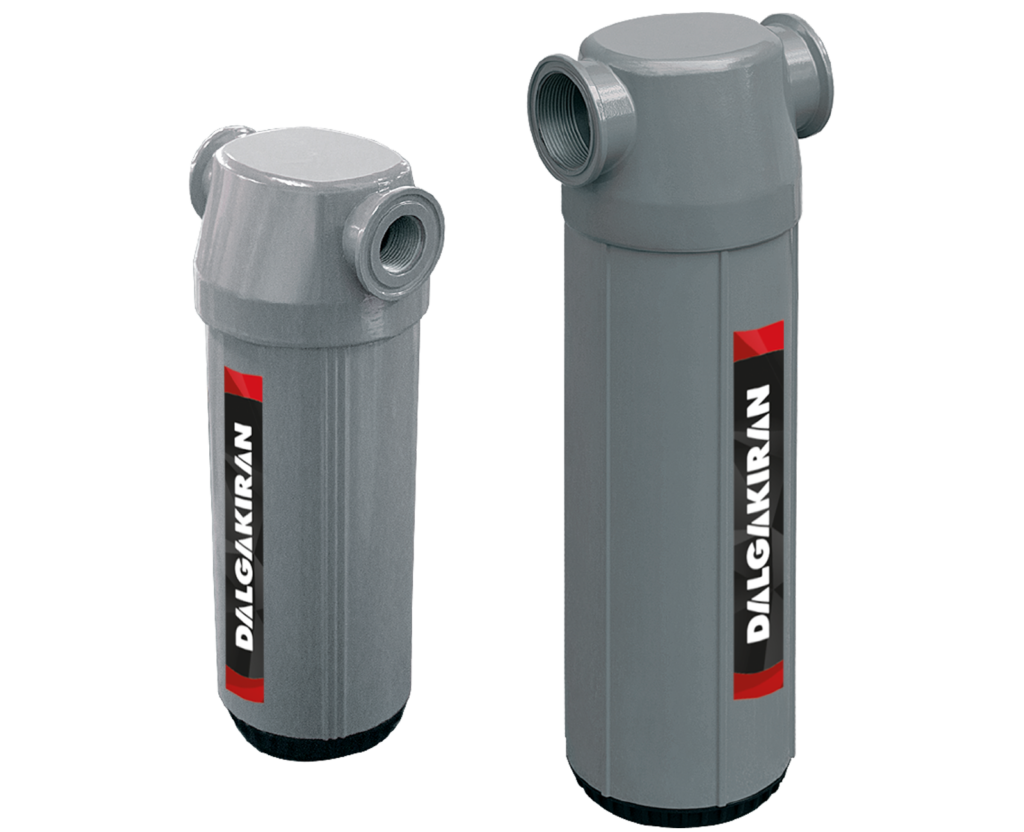

G WS Water Separators

Dalgakıran’s G WS water separators have 1/4” – 3” pipes for flow rates of 2200 m³/h. Line filters should be used to remove unwanted substances left in the compressed air after the extremely efficient water separators.

Dalgakıran water separators are designed to remove liquid water and some particulates in compressed air at the compressor outlet.

Their unique centrifugal effect separates heavier-than-air matter and the low pressure drop makes them energy-efficient.

Model	Max. Pressure		Capacity		Connection	Dimensions (mm)
Model	bar	psi	(m³/min)	cfm	Connection	A	B	C	D
G 25 WS	16	232	0,4	15	G 1/4"	103	257,5	236	160
G 100 WS	16	232	1,7	59	G 1/2"	103	257,5	236	210
G 200 WS	16	232	3,3	118	G 3/4"	123	304	277	285
G 300 WS	16	232	5	177	G 1"	123	304	277	380
G 600 WS	16	232	10	353	G1 1/2"	123	320	285	470
G 1200 WS	16	232	20	706	G 2"	160	484	443	560
G 2200 WS	16	232	36,7	1295	G 3"	193	546	490	610
