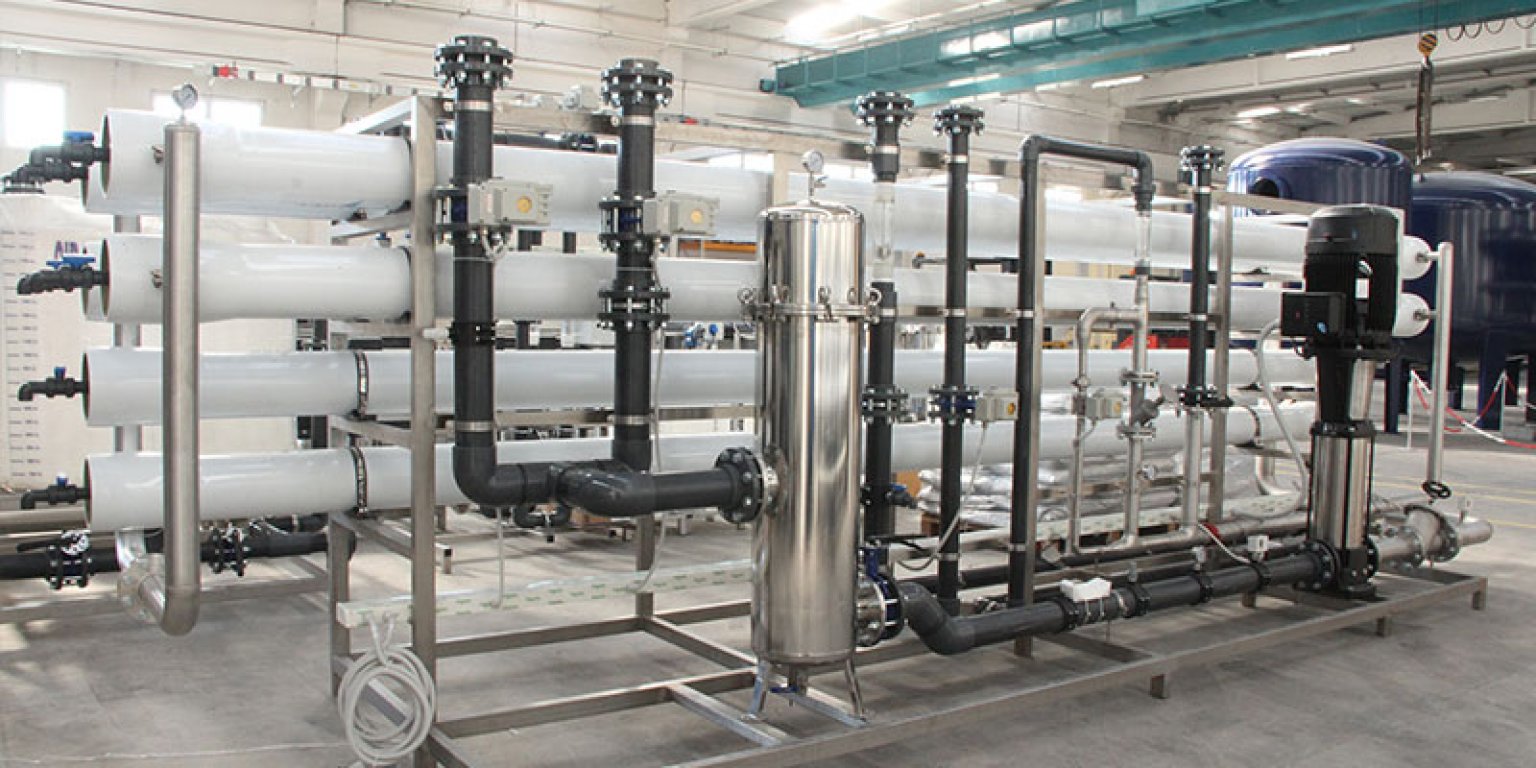

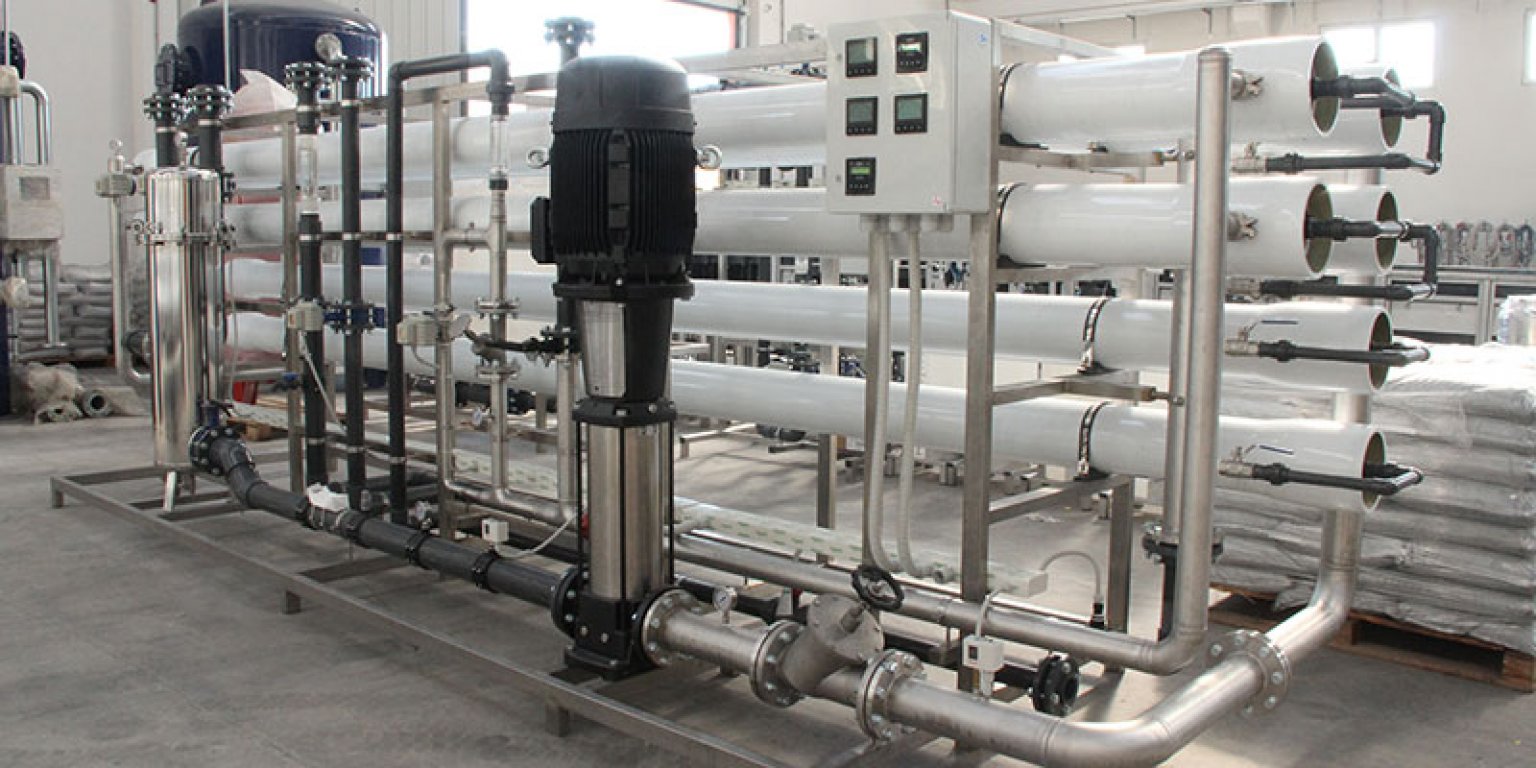

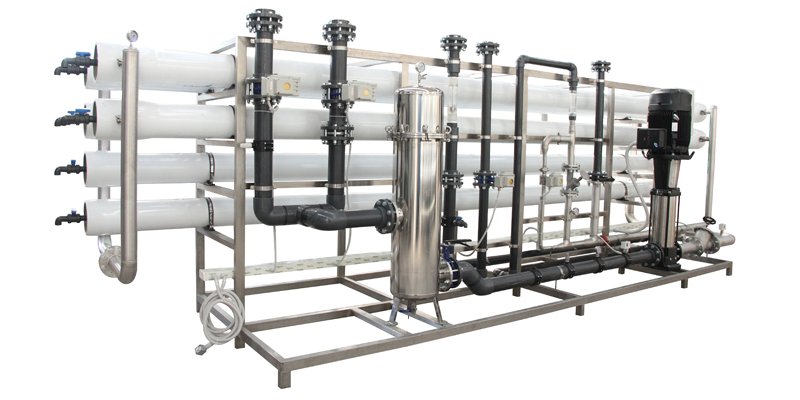

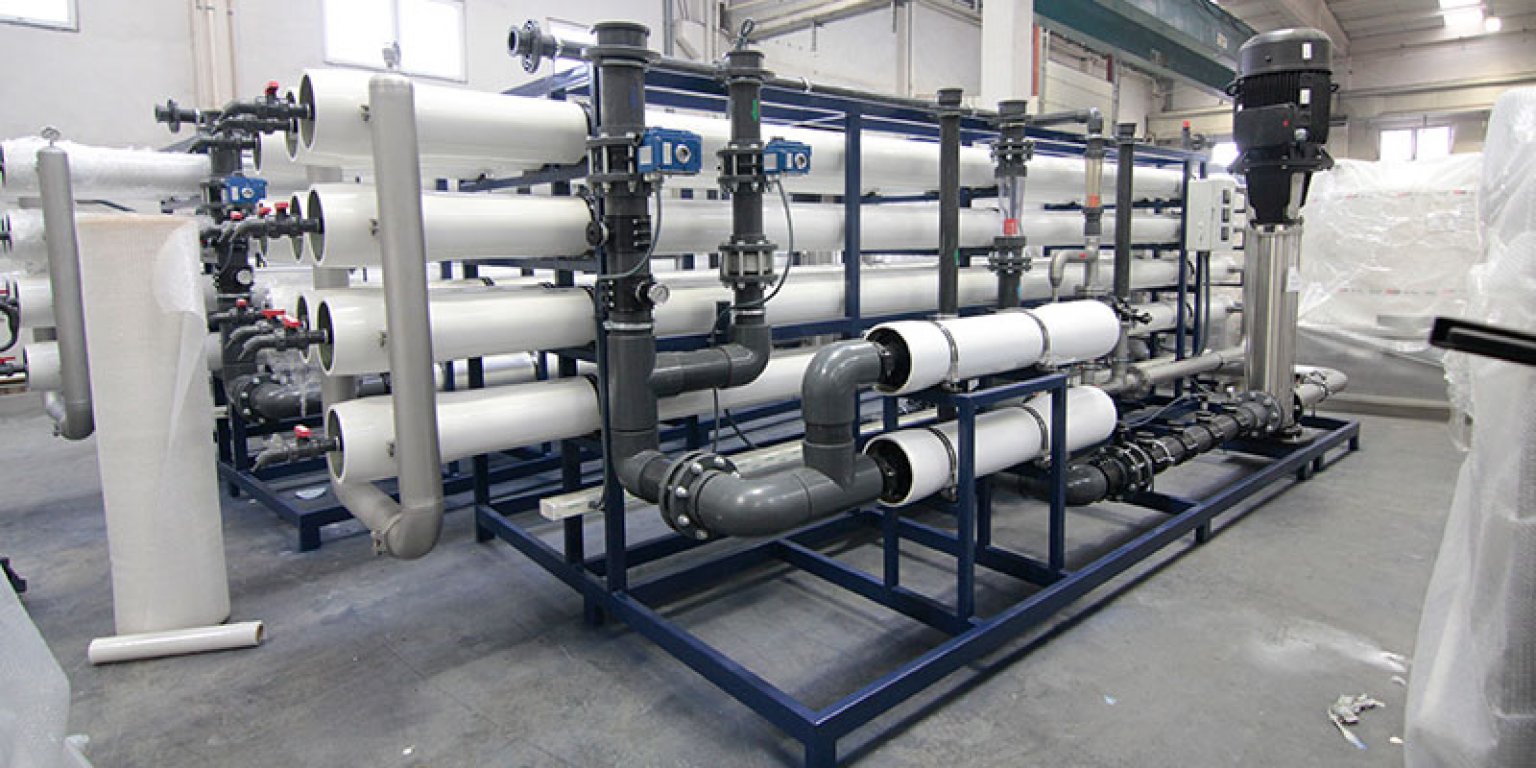

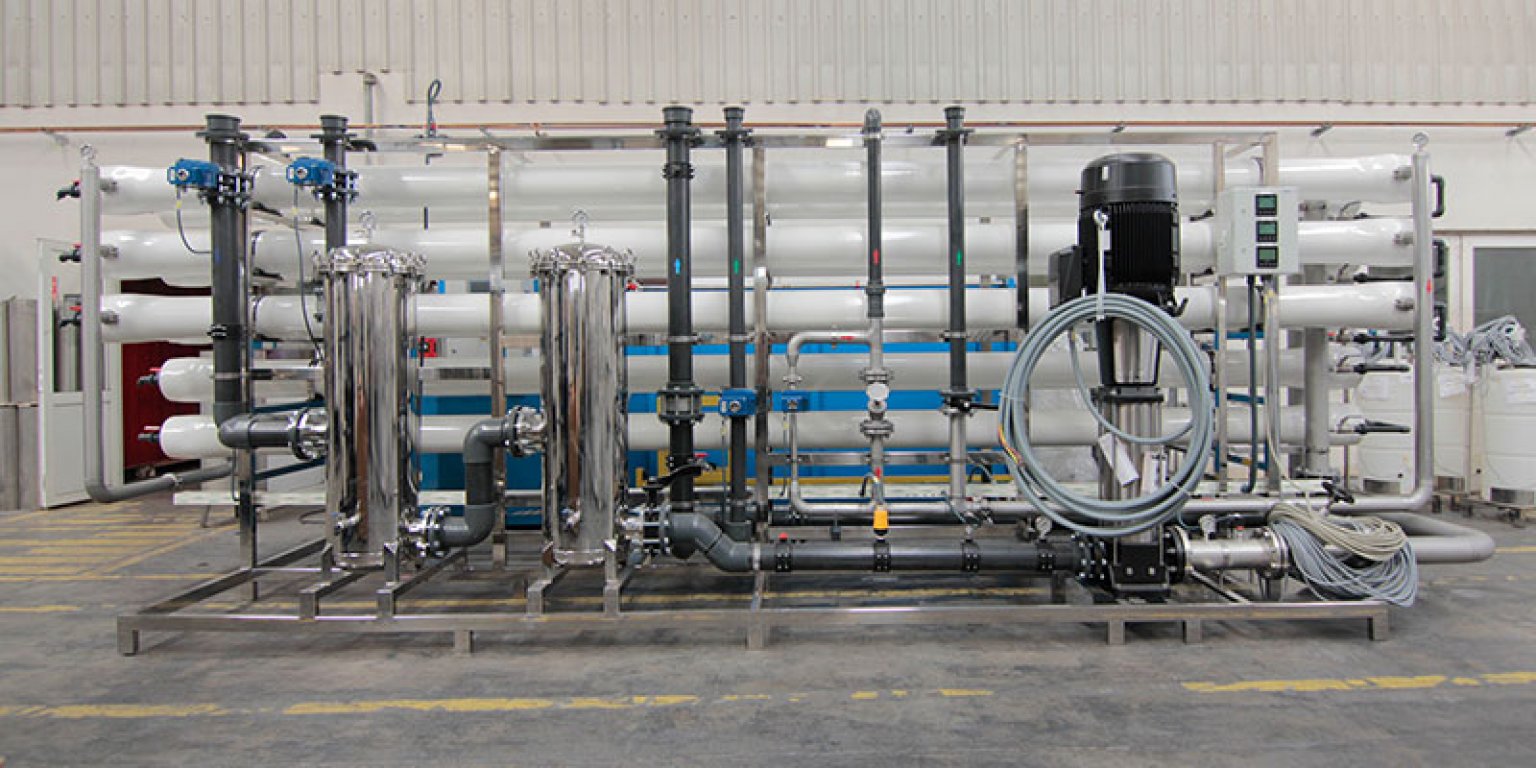

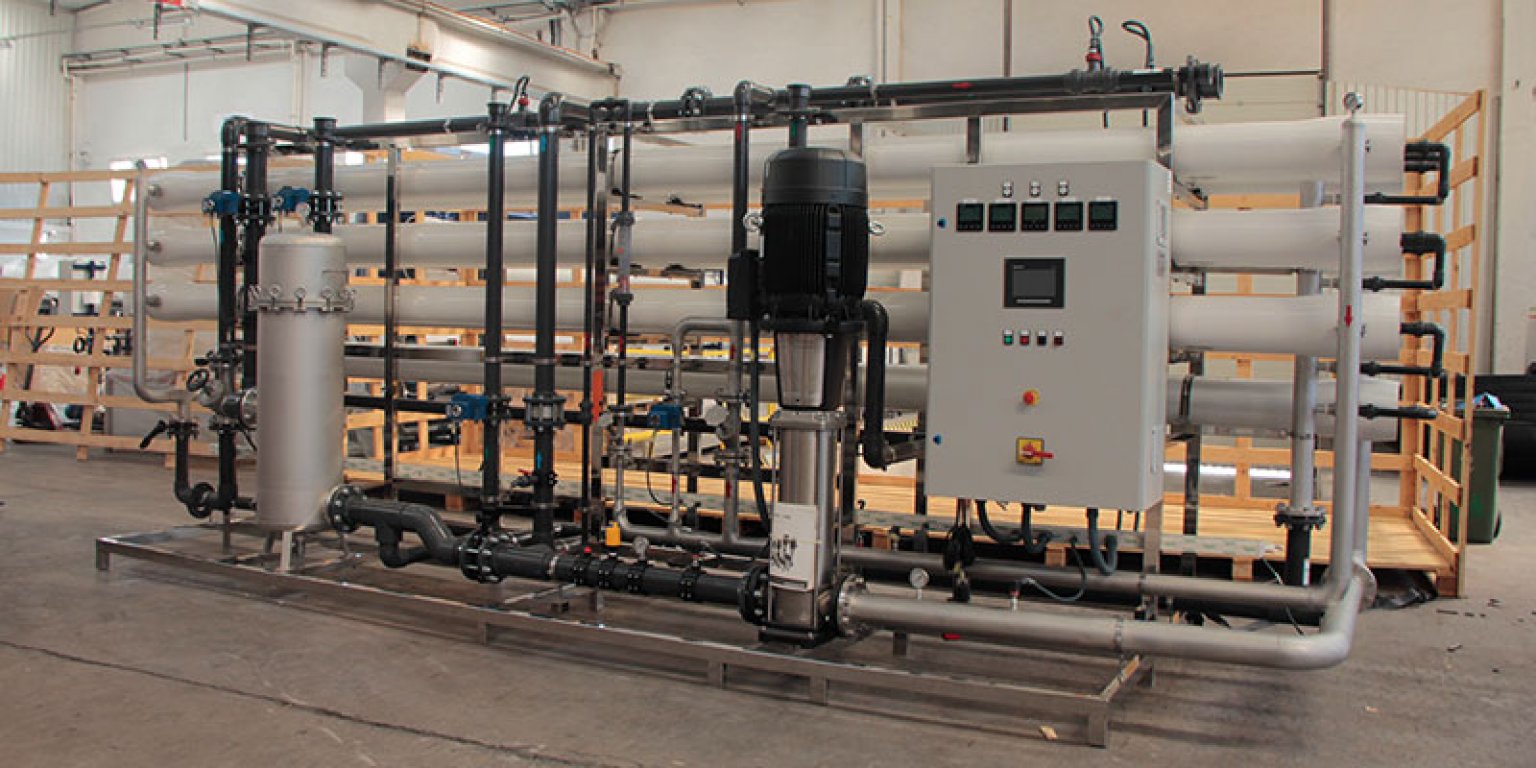

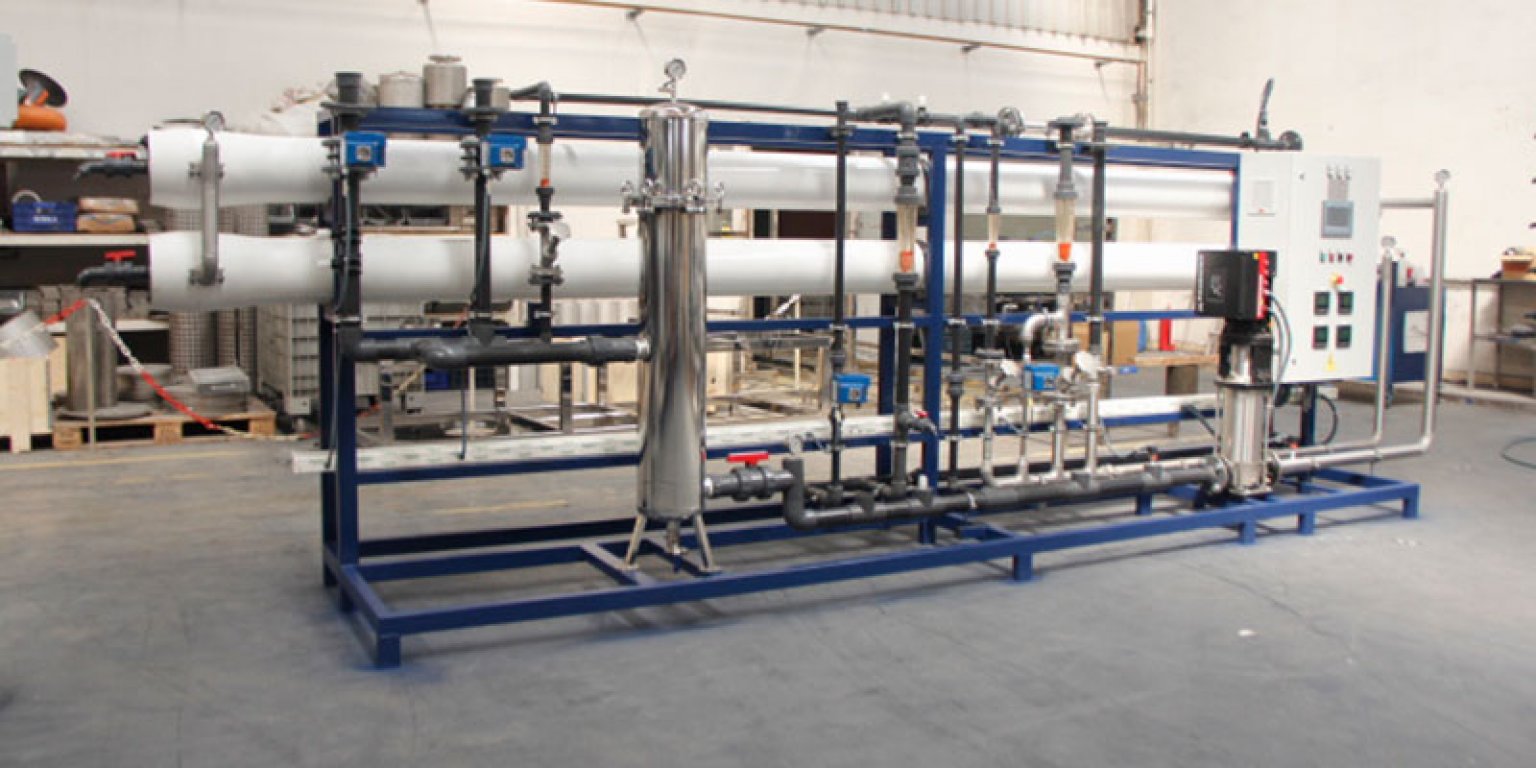

AQUALINE GAMA SERIES REVERSE OSMOSIS SYSTEMS

AQUALINE GAMA SERIES REVERSE OSMOSIS SYSTEMS

150 m3 / day to 1650 m3 / day,
Reverse Osmosis is the membrane filtration process for obtaining pure water, which separates all
unwanted minerals from water, applied to waters where conventional treatment systems are
insufficient (seawater, water with high conductivity, well waters, etc.). This process continues until
osmotic equilibrium is achieved. Reverse osmosis is the reversal of this osmotic flow. Aqualine reverse
Osmosis Systems successfully ensures that pure water is obtained as a result of this process. In addition,
Aqualine Reverse Osmosis Systems can be produced in different design styles according to customer
requests.

STANDARD FEATURES

Membrane Vessels FRP
TFC Spiral wound membranes 8 "diameter
AISI304 or AISI316 stainless steel vertical centrifugal high pressure pump
ST-37 Epoxy painted carbon steel or AISI304 Stainless Steel Skid
5 Micron precision cartridge filter
Low pressure line U-PVC PN16
High pressure line AISI304 Stainless steel
Inlet electric actuated butterfly valve
Pressure regulating globe valves at pump outlet and wastewater line
Low and high pressure switch
Product water and waste water flow meters
Glycerine manometers
Product water conductivity indicator (0-2000µS / cm)
Product water pH meter (optional)
Autoflush, automatic rinsing and chemical washing system
On-Off switch
PLC and operator panel
380 V / 50Hz / 3ph
IP56 control panel

Recommended Inflow Water Limits

Inlet water TDS: 0 – 2,000 ppm
Working pressure: between 10 and 15 bar
Inlet water pressure: 2 to 5 bar
If hardness is more than 3 French ASC dosage required.
pH range: 6 – 8
Silica (SiO2) Tolerance: 25 ppm max. @ 60% efficiency
Max. Inlet water temperature = 30º C Max.
Max Iron (Fe) tolerance: 0.05 ppm, if ASC is dosed 0.2 ppm
Hydrogen Sulfide should not be.
There should be no turbidity (NTU<1)
SDI < 5
Microbiological contamination should be removed
