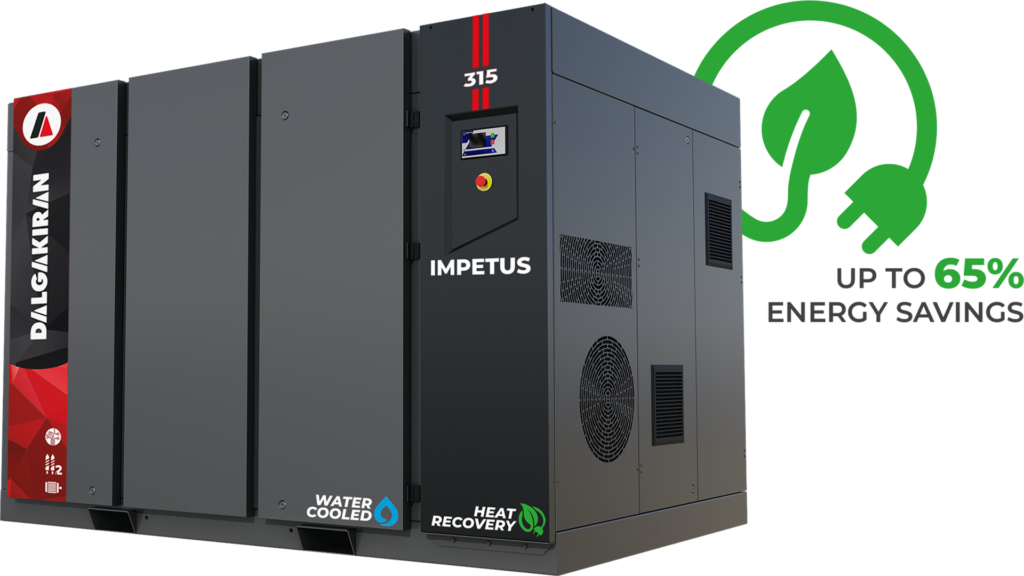

Power : 90-315 kW 7,5-8,5-10-13 bar 5,2-62,67 mยณ/min
Oil Injected, Two-Stage, Direct Coupled, Fixed/Variable Speed
Rotary Screw Air Compressors
Next gen compact compressors maximize your energy saving, minimize your total cost of own.
General Features
โข IE4 efficiency-class electric motors
โข Two-stage screw block
โข Variable and fixed speed motor power options
โข Water cooling and heat recovery (optional)
โข Operating with low noise level

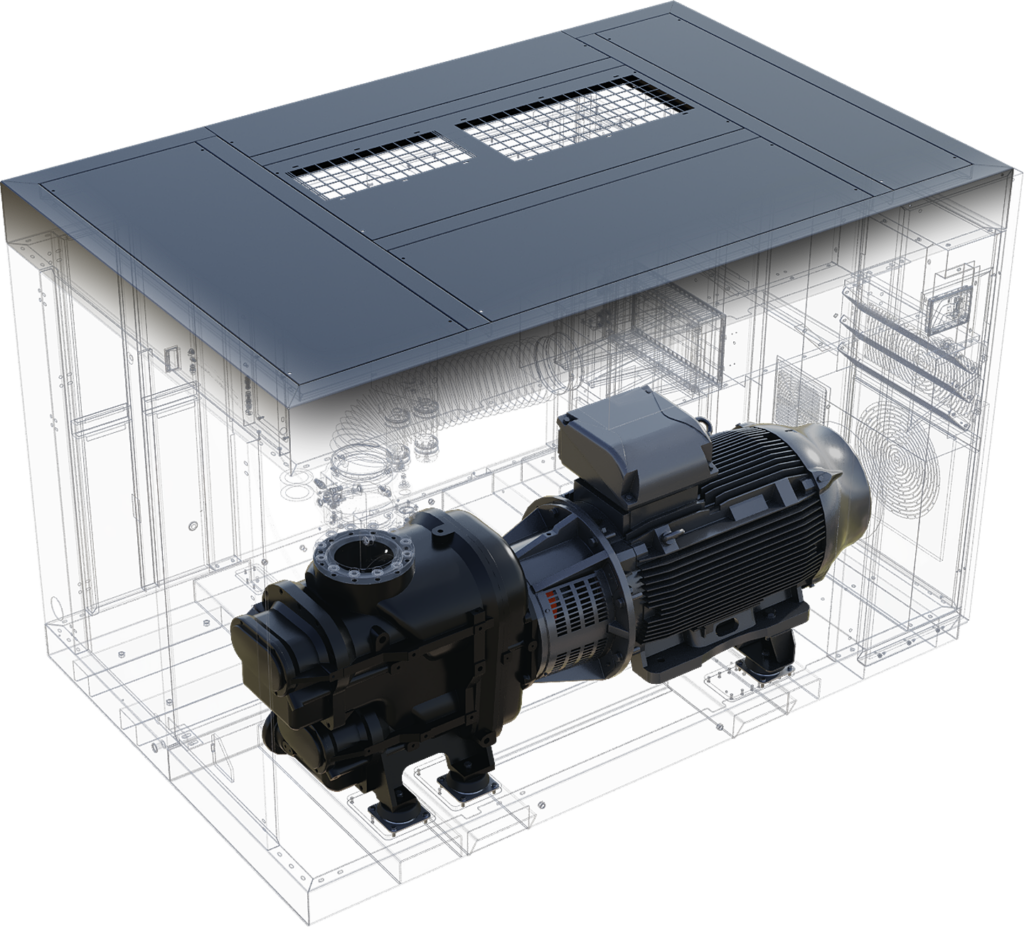

Screw Block
- Two-stage screw produces energy efficiency by up to 10%
- Higher flow rate by up to 10% comparing to single stage
- Direct coupled
- Reduced internal losses
- Thanks to low compression rate, low axial and compression forces
- Thanks to low rotor speeds, a long service life
- With two-stage compression near isothermal compression
- Reduced axial and compression forces resulting in longer screw and bearing service life
Electric Motor
- IE4 efficiency-class electric motors
- Motors have B-class temperature increase
- Continuous operating feature

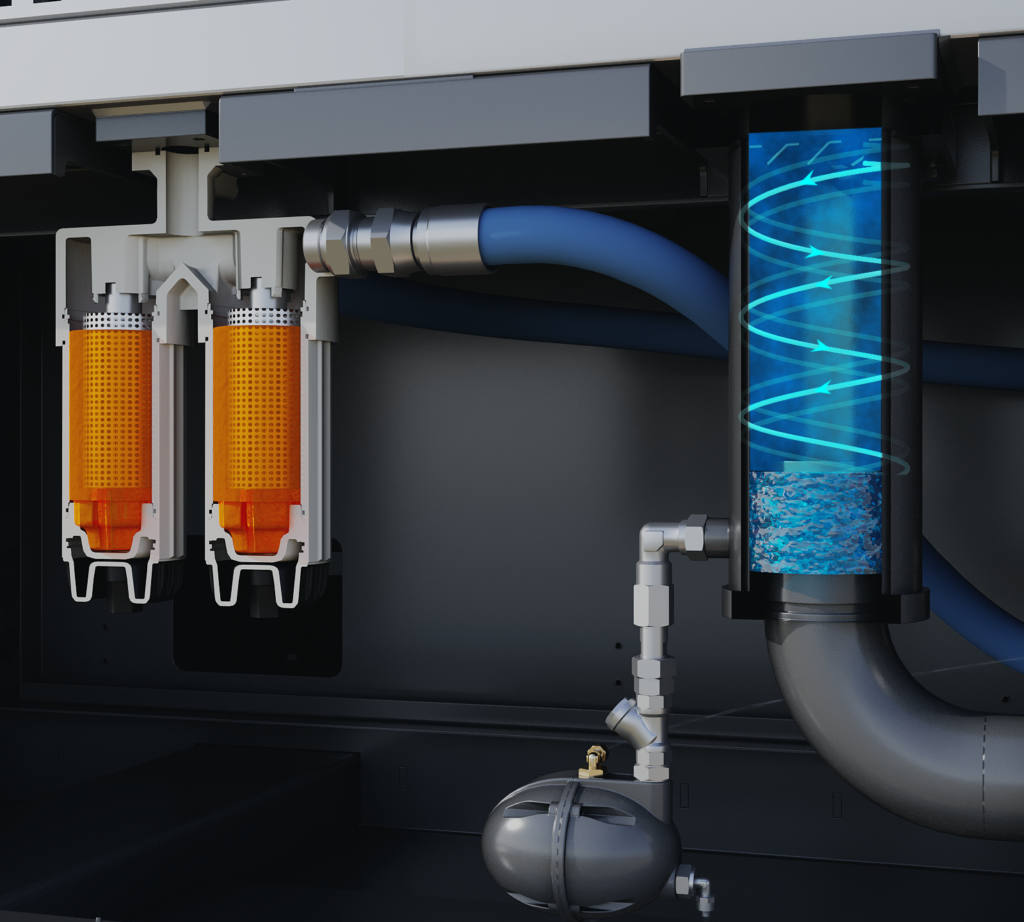

Oil Filter
- Eco-friendly and recyclable oil filter
- Oil filter contains no metal alloys
- Aluminium housing
- Easy maintenance
Water Separator
- Compact, integrated, and unique design
- Reliable initial separation (>% 99)
- High separation efficiency at high humidity and temperature
- Zero loss drain
- High energy efficiency with minimal pressure loss

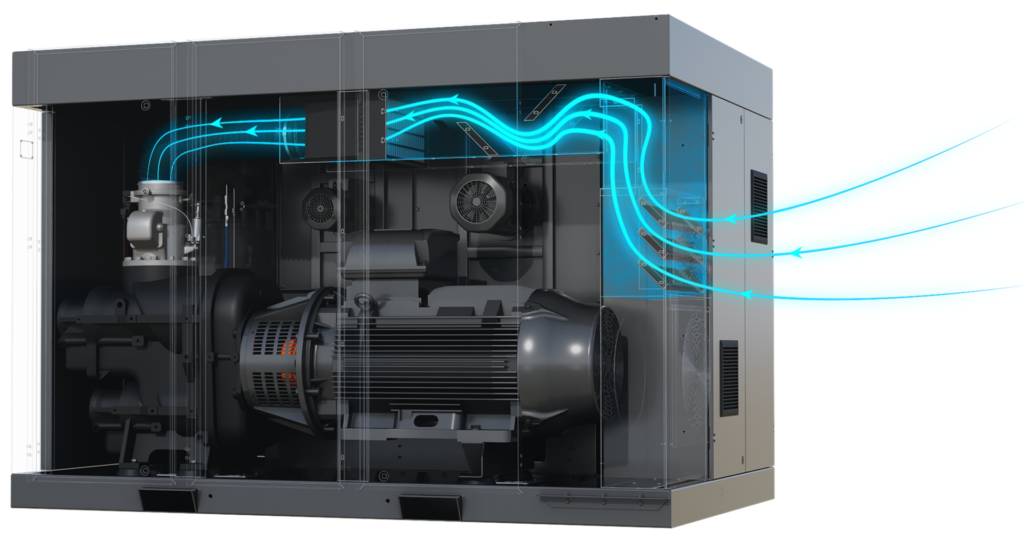

Air Filter
- Protects the screw block by separating particles down to 3 microns
- Intake pressure loss: <2 mbar results in high efficiency throughout the maintenance period
- Easy maintenance
- Long service life

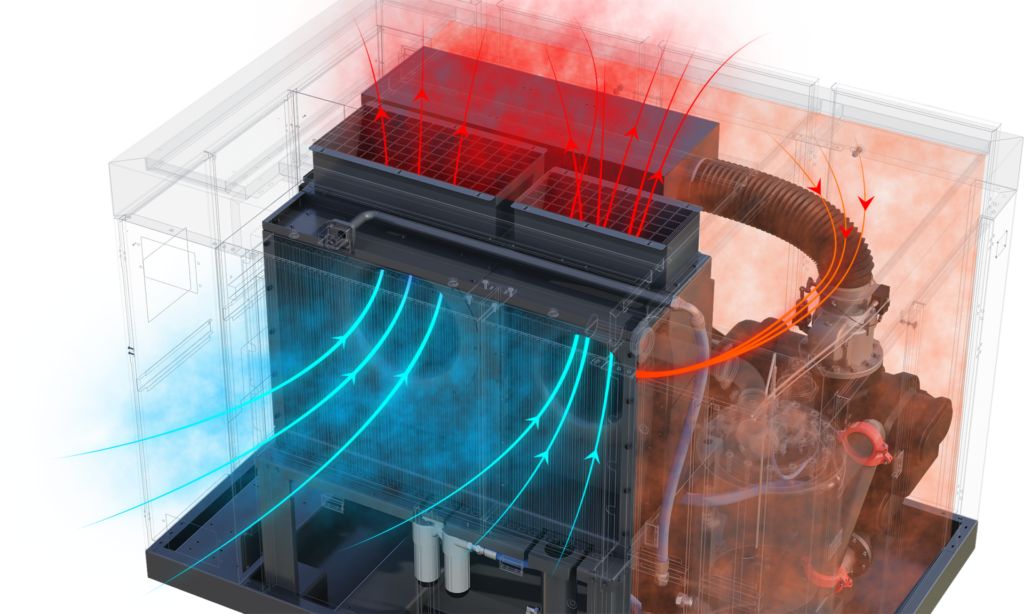

Cooling System
- High cooling efficiency in compact air and oil heat exchangers
- Suitable design for operating up to 45ยฐC
- Low noise level with low speed radial fans
- Energy efficiency with optimum oil temperature thanks to VSD-controlled radial
Controller
- Without the need for an external main controller, ability to work synchronized for up to 5 compressors
- Weekly scheduler for starting / stopping the machine at 3 different time intervals can be individually set for each day of the week
- Dual PID feature on inverter-equipped models can run simultaneous PID for temperature and pressure
- Pressure PID on inverter-equipped models ensures energy-efficient operation by maintaining the pressure at the required level
- Temperature PID on inverter-equipped models controls the fan speed to maintain the screw blockโs most efficient operating temperature
- On inverter-equipped models, all inverter and compressor control data are managed from a single point
- Internal ModBus communication
- User-friendly on-screen interface
- Alarm log records the last 20 alarms
- Periodic maintenance warnings and log records
TECHNICAL SPECIFICATIONS
