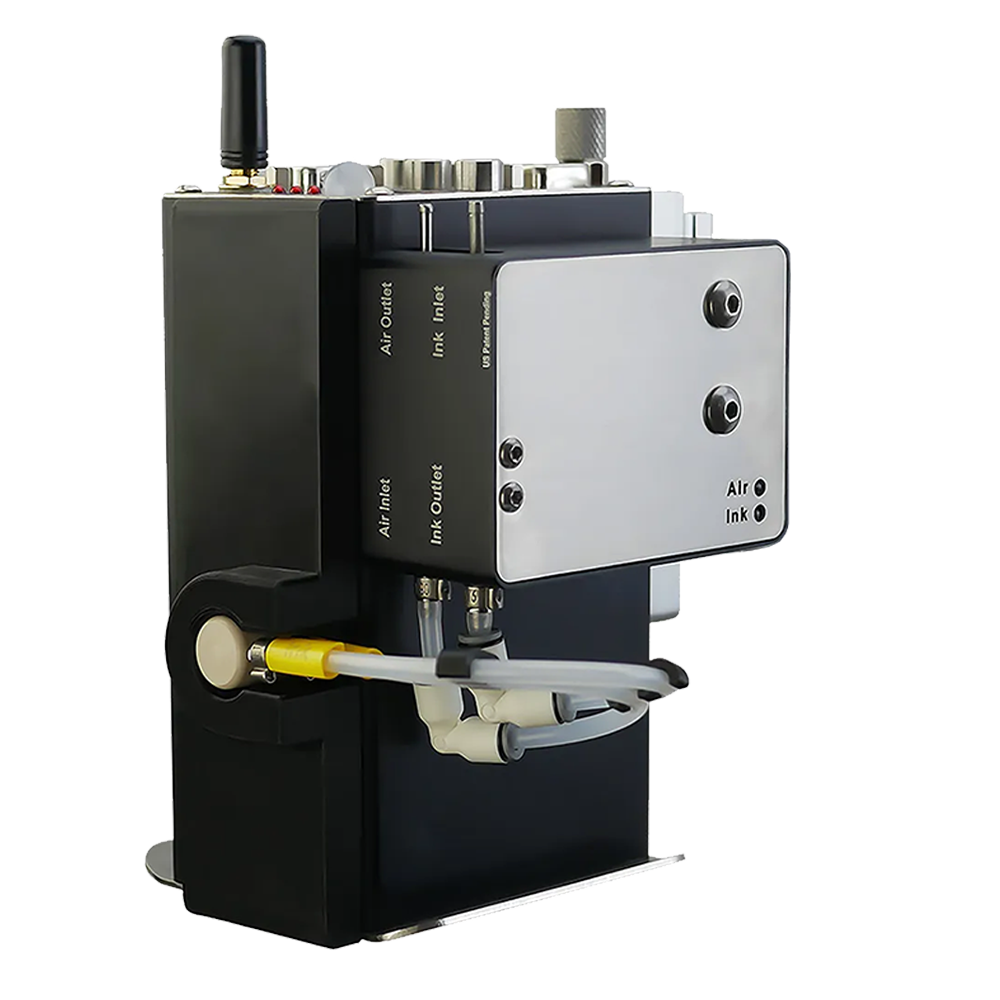

maple jet hx ultra
Description
Ideal for date coding in high-speed high volume production line particularly in flexible packaging running on vertical, horizontal form filling, or winder rewinder machine
Features
- Ease of Use & Sustainable
- Low Maintenance Requirement
- Easy Integration
- Low Cost of Print and Total Cost of Ownership (TCO)
- Wi Fi Connectivity
Specifications
| AUTO NOTIFY | Events such as ‘low ink level’, ‘printing completed’, and ‘online data received’ can be automatically communicated by choosing selected channels e.g. USB, RS232, and Wi-Fi (HTTP) |
| AUTO PILOT | Allows other external devices to control and monitor Hx Printer. Any third-party device (e.g. PLC), system, or software can send a command to Hx Printer. |
| DAILY PRODUCTION REPORT | Provides an hourly print report of the printer giving an overview of the complete daily production |
| ECONOMY MODE | Reduces ink consumption to up to 50%, increasing print quantity |
| EXTERNAL DATA | Easy integration to external devices e.g. PLC, weighing scale, etc for printing variable data. Auto calculation and printing of the product weight |
| FIELD UPGRADE | Allows the printer’s software to be upgraded remotely |
| INK ESTIMATION CALCULATOR | Provides an estimate number of prints per cartridge based on the message and other parameters |
| PRINTER HEALTH CHECK | Detects warning/s to avoid future or unwanted downtime |
| ROLLOVER TIME | Easily customise time and date as per the company’s required production time or work shift |
| RESOLUTION | Hx Ultro-HR 600dpi, Hx Ultro-HT 300dpi |
| MAXIMUM PRINT SPEED | 120 m/min (160 dpi) |
| LOGO PRINTING OPTION | Yes |
| BARCODE PRINTING | All Types of Barcodes |
| NUMBER OF PRINT LINES | Up to 6 (2mm each line) |
| HEIGHT RANGE OF PRINTABLE CHARACTERS | Up to 12.7mm (~0.5”) |
| HOUSING MATERIALS | Coloured Anodized Aluminum & Stainless Steel |
| CONTROLLER WEIGHT | 1050 gm |
| DIMENSION | 146 mm x 90 mm x 84 mm |
| ENVIRONMENTAL CONDITIONS | Temperature 0-50°C, Humidity 0-80% (special casing for humid environment) |
