maple jet Nitro hx

maple jet nitro hx

For Production Line of Various Scale

Hx Nitro industrial TIJ printer comes with a fast-drying high-throw distance solvent-based ink. Its integrated printhead removes the hassles of bulky and messy coding & marking. All by reducing your overall production cost. Hx Nitro is suitable for high-speed production lines.

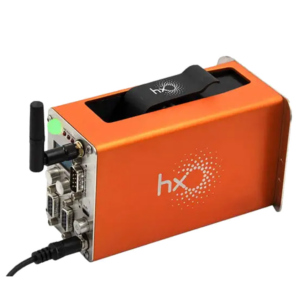

Hx Nitro Thermal Inkjet Printer

Maplejet’s Hx Nitro thermal inkjet printer offers the easiest and simplest way to print text, production date, lot number, counter, 2D Barcode, GS1 DataMatrix, Shift, Logo, and External Data to any porous or non-porous substrates.

Easy to install in any production line
Design simple message & monitor printer using smart devices such as mobile phone, tablet or computer via Hx Manager
Almost maintenance-free technology
WiFi communication availability
Special ink solution for a specific substrate and working condition
Compatible with MapleJet Porous and Non-porous ink types
Web-based software for designing multiple messages

Hx Nitro TIJ coding printer will increase the efficiency of your packaging’s production line.

Why choose Hx Nitro?

With WiFi capabilities, it allows operators to use a smartphone to design messages, avoiding sharing of one controller promoting social distancing
Connect to multiple TIJ printers using one smartphone device
No SD cards are required to transfer messages
Field upgrade allows the remote update of the printer and software
Maintenance-free technology and does not require expensive service visits.

Display	Optional 10″ Tablet with Anti-theft Lock
Message Design	Web-based Message Editor, Vanguard Create: Windows-based Message Design Software
Message Capacity	Unlimited (within Tablet/Windows)
Start & Stop Time	Immediate
Password Protection	Yes
Alarm	Built-in beacon, 128*64 pixel OLED, Buzzer
Number of Printheads	1
System Language	German, French, Japanese, Portuguese, Spanish, Thai, Turkish, Hindi, Arabic, Mandarin (other languages upon request)
Product Certification	CE
Warranty	12-month limited warranty (Terms & conditions apply)

Resolution	600 dpi (standard throw distance ink), 300 dpi (high-throw distance ink)
Maximum Print Speed	120 m/min (160 dpi)
Logo Printing Option	Yes
Barcode Printing	All types of barcodes
Number of Print Lines	Up to 6 (2mm each line)
Height Range of Printable Characters	Up to 12.7mm (~0.5”)
Fonts	All Windows Fonts
Date Format	Variety of date formats
Counters	Print, message, and user-defined counters available
Message Components	Text, Date, Time, Logo, Counter, Shift, Barcode, External Data, Lot Number, Alphanumerics

Auto Pilot	Allows external devices (e.g., PLC) or systems to control and monitor Hx Printer by sending commands.
Daily Production Report	Provides an hourly print report, offering an overview of the complete daily production.
Economy Mode	Reduces ink consumption by up to 50%, increasing print quantity.
External Data	Enables easy integration with external devices (e.g., PLC, weighing scale) for printing variable data, including auto calculation and printing of product weight.
Field Upgrade	Allows the printer’s software to be upgraded remotely.
Ink Estimation Calculator	Estimates the number of prints per cartridge based on the message and other parameters.
Printer Health Check	Detects warnings to prevent future or unexpected downtime.
Rollover Time	Easily customizes time and date according to the company’s production or work shift requirements.

Technology	Funai Cartridge Technology
Ink Type	Wide range of porous & non-porous ink selection
Colour	Black (solvent-based), Black, Red, Blue (water-based/semi solvent-based ink)
Cartridge Dimension	60mm x 74mm x 25.5mm
Throw Distance	With normal throw distance ink (4mm) and long-throw distance ink up to 10mm
Ink Recognition	Automatic

Connectivity	Easy connectivity based on customer needs: Wi-Fi (Direct and Access Point connections), Isolated RS232 (optional), USB Cable
Power Supply	110 to 220 VAC
Encoder	Optional
Two or Three Color External Beacon	Optional
External Sensor	Yes
Mounting & Stand	T-bracket mounting or Tripod Stand
