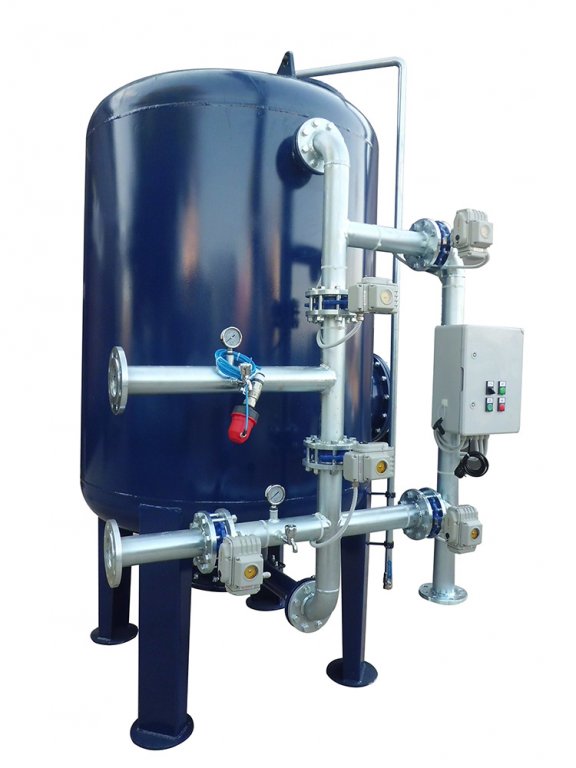

• Epoxy painted carbon steel tank

• Maximum working pressure 6 bar

• Time-controlled backwash

• Pneumatic actuated butterfly valves (Optional Electric Actuator option)

• F-1215 and F-1615 sub-collection structure lateral diffuser

• Sub-collection structure between F-2015 and F-2815, nozzle diffuser over mirror

• PVC-U material face piping (Optional galvanized surface piping option)

• Sample taps and manometers at system inputs and outputs

• PLC based Siemens logo control panel (Optional touch screen option)

• Electricity 220V / 50 Hz / 1 pH

• The supply of dry instrument air required for operation of pneumatic valves belongs to the customer.

• Recommended compressor capacity is minimum 100 Lt / min @ 8 bar.

• In our company, Metal Tanks can be produced for treatment systems in accordance with Pressure

• Equipment Standards and certified.

• AD 2000 MERKBLATT

• ASME SEC.VIII

• EN 13445 (TÜV NORD SYSTEMS NOTIFIED BODY NUMBER 0045 approvad)
