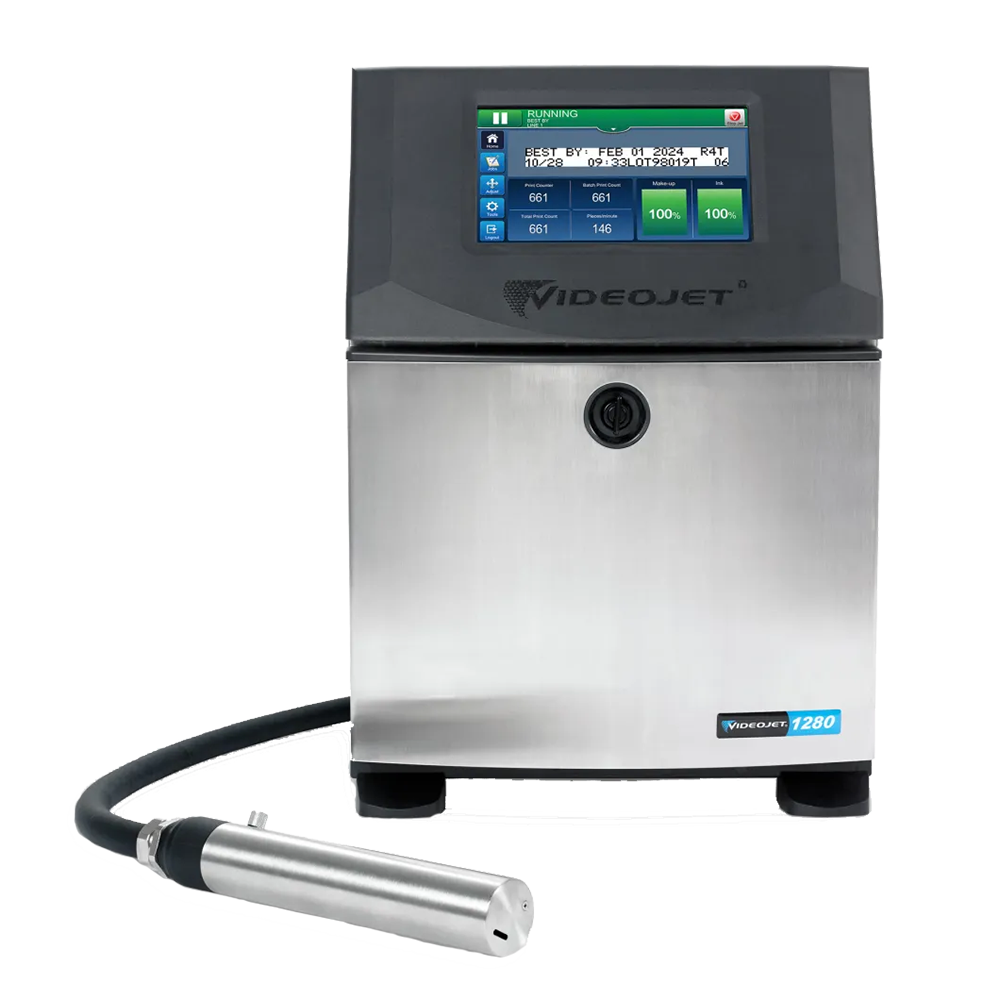

Video jet 1280

Videojet has redefined simple with the Videojet 1280 , Continuous Inkjet (CIJ) printer. From the intuitive interface to smart design features, it’s simple for all operators to use.

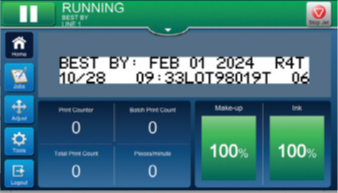

8″ tablet-inspired Simplicity ™ interface
Proven Videojet printhead and fluid systems

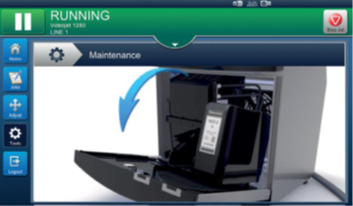

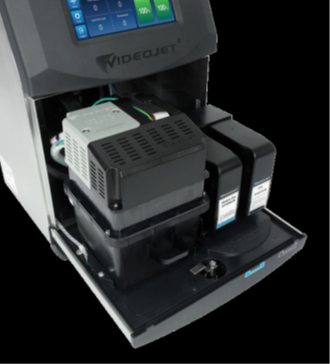

One, easy-to-replace Videojet SmartCall ™ service module
All basic I/O ports included

Focusing on 2 key elements, we are delighted to reveal our best value for money, general purpose continuous inkjet printer, designed with your needs in mind.

Reliable
Simple

1. Reliable : Class-Leading Reliability

The 1280 improves upon the proven Videojet printhead and fluid systems, providing stable performance and reliability across a broad range of operating conditions.

Improve start-up time

Don’t let variable volumes and production runs impact your start-up process. Videojet provides a wide selection of long shelf-life inks, with consistent print quality across applications. Reduce costly waste When you don’t have high utilization, ink supplies can expire before you get to use the whole cartridge.

The Videojet 1280 can remain unused for up to 14 days and still provide excellent print quality on start-up, without the need for any additional printer intervention.

Reduce costly waste

When you don’t have high utilization, ink supplies can expire before you get to use the whole cartridge.

Videojet provides a wide selection of long shelf-life inks, with consistent print quality across applications.

2. Simple :

Specifications

TECHNICAL SPECIFICATIONS	REMARKS
Line speed capability	Can print 1 to 5 lines of print at speeds of up to 533fpm (162mpm) (10 characters per inch, single line of print)
Font matrix configuration	Single-line: 5X5, 5x7, 5X7 Tower, 7x9, 9x12, 10x16, 16x24, 25x34 Twin-line: 5x5, 5x7, 7x9, 9x12, 10x16 Tri-line: 5x5, 5x7, 7x9 Quad-line: 5x5, 5x7 Five-line: 5x5
Linear bar codes	UPC A&E; EAN 8 & 13; Code 128 A, B & C; UCC/EAN 128; Code 39; Interleaved 2 of 5; GS1
QR codes	21x21, 25x25, 29x29, 33x33 Error correction mode L, M, Q or H
Data Matrix codes	Square Form up to 32x32; Rectangular Form up to 16x48
Nominal character height	Selectable from 0.079” (2mm) to 0.40” (10mm), depending on font
Throw distance	Optimal: 0.472” (12mm) Range: 0.197” (5mm) to 0.591” (15mm)
User interface	8” high-response TFT-LCD touch screen WYSIWYG touch to edit message editing
Custom logo/graphics	Can be created via optional CLARiSOFTTM software*
Character sets	Chinese, Russian/Bulgarian, Turkish/Scandinavian, Romanian, Greek, Arabic, Japanese/Kanji, Faroese, Hebrew, Icelandic, Korean, East European, European/American and Vietnamese
Languages and interface options	English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Serbian, Simple Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish and Vietnamese

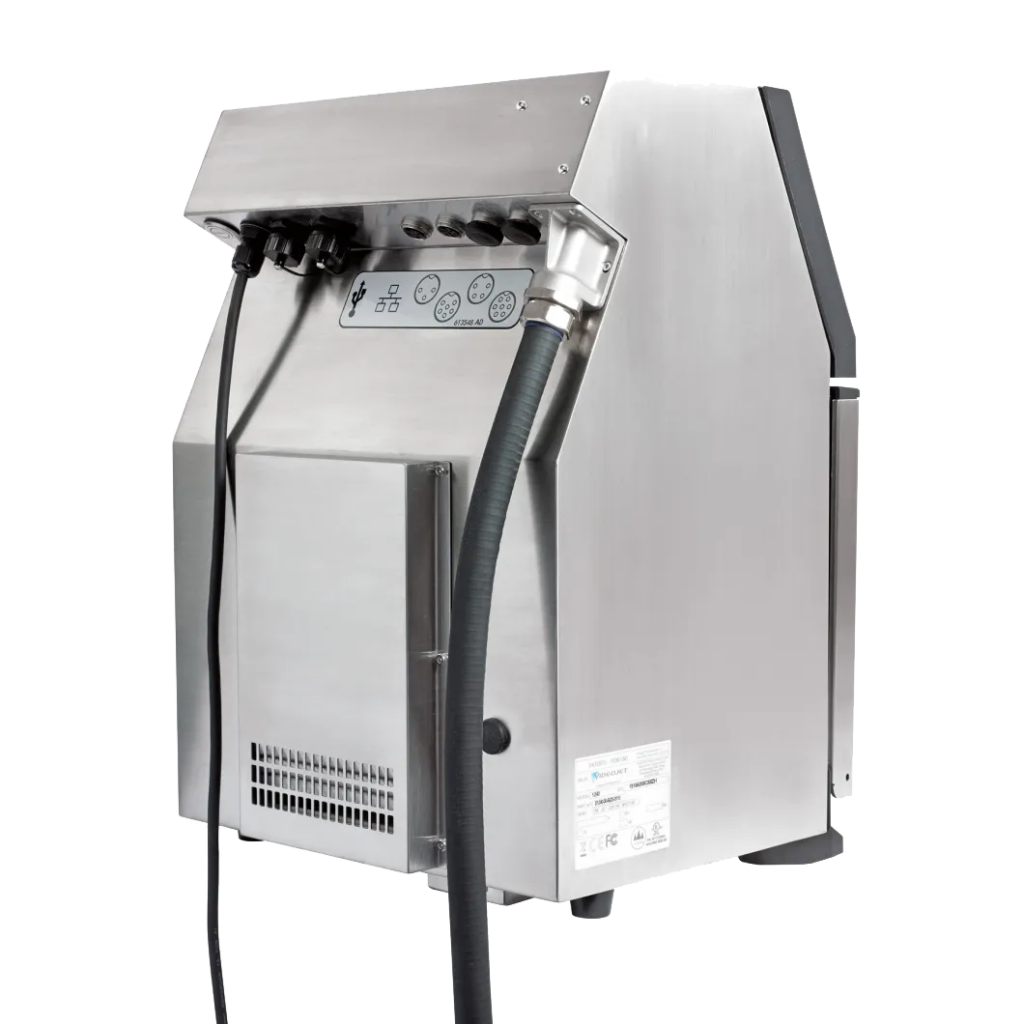

Input/output	Product detect input Encoder input Beacon (Alarm light) output Relay output USB 2.0 (2x) Ethernet LAN™
Message storage	More than 250 complex messages
Environmental protection	IP55 standard, no plant air required, stainless steel cabinet

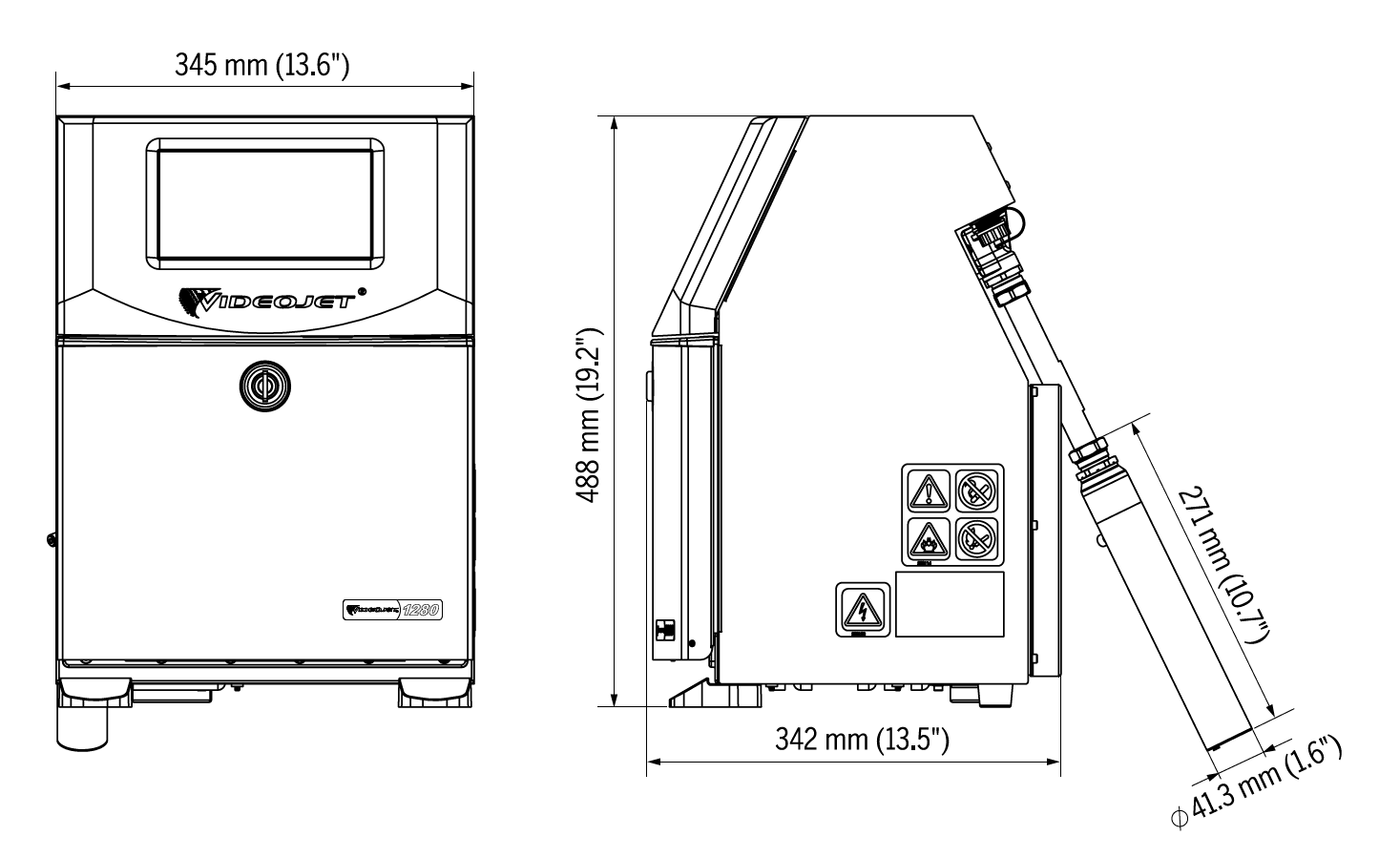

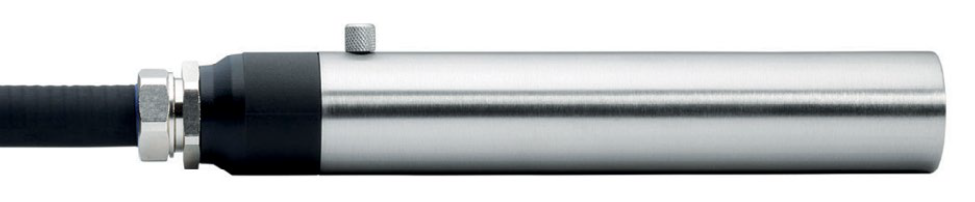

Printhead	Heated printhead Diameter: 1.63” (41.3mm) Length: 10.62” (269.8mm)
Printhead umbilical	Ultra flexible Length: 6.56’ (2m) Diameter: 0.91” (23mm) Bend radius: 4.0” (101.6mm)

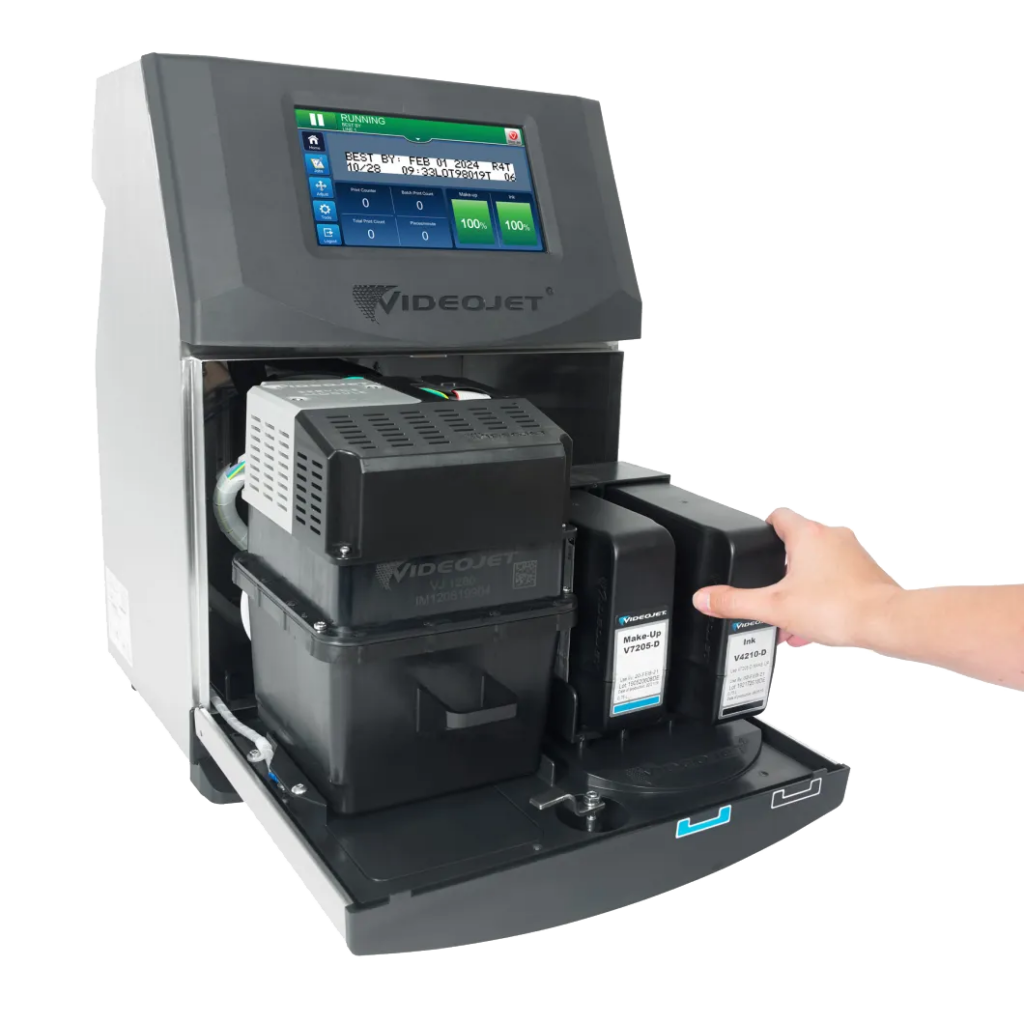

Fluids containers	Ink and Make-up Smart Cartridge™ 0.793 qt. (750ml)
Temperature/humidity range	32°F to 122°F (0°C to 50°C) 0% to 90% RH non-condensing With selected inks; actual installation may require additional hardware based on production environment conditions
Electrical requirements	Nominal supply power 100-240 VAC at 50/60 Hz, 80W
Approximate weight	Unpacked and dry: 39.5lbs (17.9kg)
Options	Dry air kit for high humidity and harsh environments (requires plant air) Wide range of accessories
